eve::editing::EditableTargetState类 参考

Dirty region and revision shared by every editable document target. 更多...

#include <EditableTarget.h>

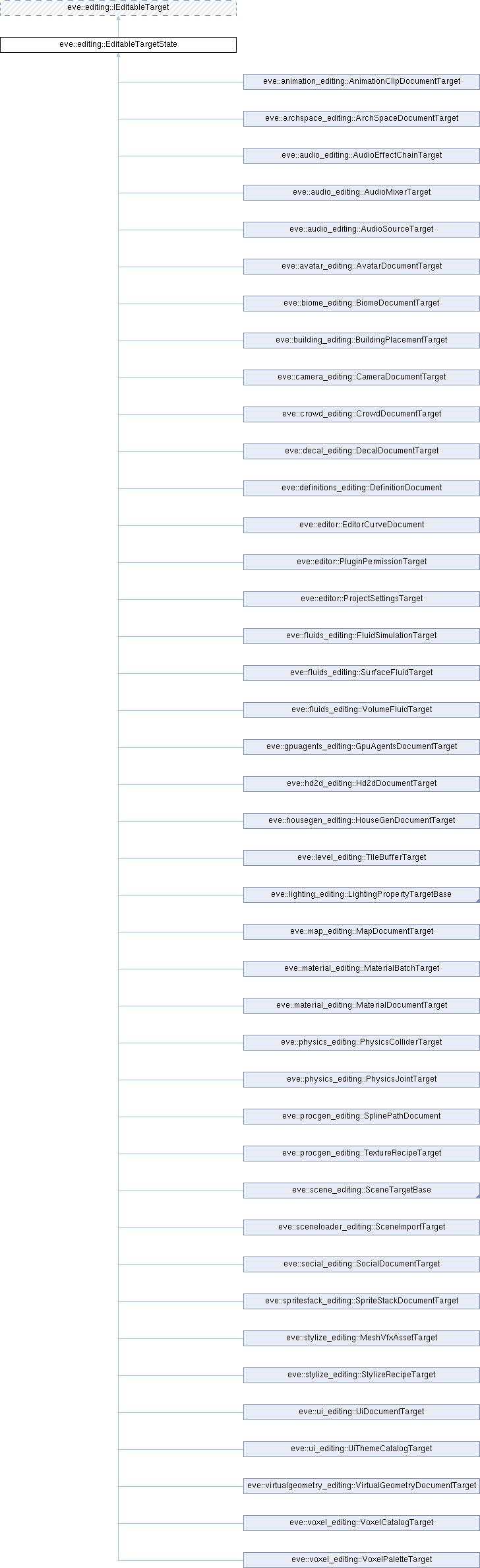

类 eve::editing::EditableTargetState 继承关系图:

Public 成员函数
	EditableTargetState (Revision initial=1)
	Constructs the shared state with an explicit initial revision.
EditRegion	dirtyRegion () const override
	Return the accumulated dirty region.
void	clearDirtyRegion () override
	Discard the dirty region; the revision does not change.
std::uint64_t	revision () const override
	Return the current revision.
Revision	revisionValue () const noexcept
	Return the revision as the shared protocol revision type.
Public 成员函数 继承自 eve::editing::IEditableTarget
virtual	~IEditableTarget ()=default
	Releases IEditableTarget resources.
virtual TargetId	targetId () const =0
	Target id.
virtual TargetDescriptor	describe () const
	Describe the target for tools and automation.
virtual void *	queryCapability (const CapabilityId &capability)
	Query an optional stable capability.
template<class C >
eve::OptionalRef< C >	capability ()
	Query a capability through its interface-owned stable identity.
template<class C >
eve::OptionalRef< const C >	capability () const
	Capability.
template<class C >
C *	query ()
	Queries query.
template<class C >
const C *	query () const
	Queries query.

Protected 成员函数
void	widenDirty (int x, int y)
	Widen the dirty region without advancing the revision.
void	widenDirty (const EditRegion &region)
	Widen the dirty region without advancing the revision.
void	widenDirty ()
	Mark an unknown area dirty without advancing the revision.
void	bumpRevision ()
	Advance the revision without touching the dirty region.
void	setRevision (Revision revision)
	Adopt a revision observed elsewhere, without advancing it.
void	setDirtyRegion (const EditRegion &region)
	Replace the dirty region wholesale, without advancing the revision.
void	markDirty (int x, int y)
	Include one cell in the dirty region and advance the revision.
void	markDirty (const EditRegion &region)
	Include a whole region and advance the revision.
void	markDirty ()
	Mark an unknown area dirty and advance the revision.

详细描述

Dirty region and revision shared by every editable document target.

Inherit this instead of hand-writing the dirty-region accessors, the revision accessor and their two members in each target. Identity (targetId) and the descriptor's type and capability list stay per-target; only the state is common. Mutation goes through the helpers below rather than through the members, so a target cannot advance its revision without recording what changed. The initial revision is a constructor argument because targets legitimately differ: some start at the first revision, some at "not yet revised".

@ownership Non-owning shared state: a derived target owns this subobject and the state owns only its dirty region and revision values. @lifetime The subobject lives exactly as long as the derived target; the accessors return by value, so no reference escapes. @thread Editing/protocol thread of the owning target; no synchronization is provided here. @reentrancy Side-effect free accessors; the protected mutators touch only this subobject and never invoke callbacks.

备注

Revision here is editing::Revision, the protocol's plain 64-bit revision, not the eve::Revision strong type used by property providers. Keeping the protocol boundary on the plain integer is deliberate: ExpectedRevision/BaseRevision are plain integers too.

EditableTargetState public API.

在文件 EditableTarget.h 第 154 行定义.

构造及析构函数说明

EditableTargetState()

eve::editing::EditableTargetState::EditableTargetState ( Revision  initial = 1 )

inlineexplicit

Constructs the shared state with an explicit initial revision.

在文件 EditableTarget.h 第 157 行定义.

成员函数说明

bumpRevision()

void eve::editing::EditableTargetState::bumpRevision ( )

inlineprotected

Advance the revision without touching the dirty region.

在文件 EditableTarget.h 第 179 行定义.

被这些函数引用 eve::avatar_editing::AvatarDocumentTarget::applyDomainOperation(), eve::hd2d_editing::Hd2dDocumentTarget::applyDomainOperation(), eve::biome_editing::BiomeDocumentTarget::applyDomainOperation(), eve::procgen_editing::TextureRecipeTarget::applyDomainOperation(), eve::sceneloader_editing::SceneImportTarget::applyDomainOperation(), eve::voxel_editing::VoxelCatalogTarget::applyDomainOperation(), eve::voxel_editing::VoxelPaletteTarget::applyDomainOperation(), eve::animation_editing::AnimationClipDocumentTarget::applyDomainOperation(), eve::archspace_editing::ArchSpaceDocumentTarget::applyDomainOperation(), eve::audio_editing::AudioEffectChainTarget::applyDomainOperation(), eve::audio_editing::AudioSourceTarget::applyDomainOperation(), eve::audio_editing::AudioMixerTarget::applyDomainOperation(), eve::building_editing::BuildingPlacementTarget::applyDomainOperation(), eve::camera_editing::CameraDocumentTarget::applyDomainOperation(), eve::crowd_editing::CrowdDocumentTarget::applyDomainOperation(), eve::decal_editing::DecalDocumentTarget::applyDomainOperation(), eve::definitions_editing::DefinitionDocument::applyDomainOperation(), eve::editor::EditorCurveDocument::applyDomainOperation(), eve::editor::PluginPermissionTarget::applyDomainOperation(), eve::editor::ProjectSettingsTarget::applyDomainOperation(), eve::fluids_editing::FluidSimulationTarget::applyDomainOperation(), eve::fluids_editing::SurfaceFluidTarget::applyDomainOperation(), eve::fluids_editing::VolumeFluidTarget::applyDomainOperation(), eve::gpuagents_editing::GpuAgentsDocumentTarget::applyDomainOperation(), eve::lighting_editing::LightingPropertyTargetBase::applyDomainOperation(), eve::material_editing::MaterialDocumentTarget::applyDomainOperation(), eve::map_editing::MapDocumentTarget::applyDomainOperation(), eve::physics_editing::PhysicsColliderTarget::applyDomainOperation(), eve::physics_editing::PhysicsJointTarget::applyDomainOperation(), eve::housegen_editing::HouseGenDocumentTarget::applyDomainOperation(), eve::procgen_editing::SplinePathDocument::applyDomainOperation(), eve::scene_editing::SceneTargetBase::applyDomainOperation(), eve::social_editing::SocialDocumentTarget::applyDomainOperation(), eve::spritestack_editing::SpriteStackDocumentTarget::applyDomainOperation(), eve::stylize_editing::MeshVfxAssetTarget::applyDomainOperation(), eve::stylize_editing::StylizeRecipeTarget::applyDomainOperation(), eve::ui_editing::UiDocumentTarget::applyDomainOperation(), eve::ui_editing::UiThemeCatalogTarget::applyDomainOperation(), eve::virtualgeometry_editing::VirtualGeometryDocumentTarget::applyDomainOperation(), eve::building_editing::BuildingPlacementTarget::commitDomainState(), eve::audio_editing::AudioEffectChainTarget::loadSnapshot(), eve::audio_editing::AudioSourceTarget::loadSnapshot(), eve::audio_editing::AudioMixerTarget::loadSnapshot(), eve::crowd_editing::CrowdDocumentTarget::loadSnapshot(), eve::editor::PluginPermissionTarget::loadSnapshot(), eve::editor::ProjectSettingsTarget::loadSnapshot(), eve::fluids_editing::FluidSimulationTarget::loadSnapshot(), eve::fluids_editing::SurfaceFluidTarget::loadSnapshot(), eve::fluids_editing::VolumeFluidTarget::loadSnapshot(), eve::gpuagents_editing::GpuAgentsDocumentTarget::loadSnapshot(), eve::lighting_editing::LightingPropertyTargetBase::loadSnapshot(), eve::material_editing::MaterialDocumentTarget::loadSnapshot(), eve::map_editing::MapDocumentTarget::loadSnapshot(), eve::physics_editing::PhysicsColliderTarget::loadSnapshot(), eve::social_editing::SocialDocumentTarget::loadSnapshot(), eve::ui_editing::UiDocumentTarget::loadSnapshot(), eve::ui_editing::UiThemeCatalogTarget::loadSnapshot(), markDirty(), markDirty(), markDirty(), eve::definitions_editing::DefinitionDocument::setJson(), eve::definitions_editing::DefinitionDocument::setReferences(), eve::definitions_editing::DefinitionDocument::setVersion() , 以及 eve::level_editing::TileBufferTarget::writeInt().

clearDirtyRegion()

void eve::editing::EditableTargetState::clearDirtyRegion ( )

inlineoverridevirtual

Discard the dirty region; the revision does not change.

实现了 eve::editing::IEditableTarget.

在文件 EditableTarget.h 第 163 行定义.

被这些函数引用 eve::editor::EditorCurveDocument::loadSnapshot() , 以及 eve::procgen_editing::SplinePathDocument::loadSnapshot().

dirtyRegion()

EditRegion eve::editing::EditableTargetState::dirtyRegion ( ) const

inlineoverridevirtual

Return the accumulated dirty region.

实现了 eve::editing::IEditableTarget.

在文件 EditableTarget.h 第 160 行定义.

被这些函数引用 eve::stylize_editing::MeshVfxAssetTarget::operator=().

markDirty() [1/3]

void eve::editing::EditableTargetState::markDirty ( )

inlineprotected

Mark an unknown area dirty and advance the revision.

Widen dirty.

Bump revision.

在文件 EditableTarget.h 第 199 行定义.

引用了 bumpRevision() , 以及 widenDirty().

markDirty() [2/3]

void eve::editing::EditableTargetState::markDirty ( const EditRegion &  region )

inlineprotected

Include a whole region and advance the revision.

Widen dirty.

Bump revision.

在文件 EditableTarget.h 第 192 行定义.

引用了 bumpRevision() , 以及 widenDirty().

markDirty() [3/3]

void eve::editing::EditableTargetState::markDirty ( int  x, int  y  )

inlineprotected

Include one cell in the dirty region and advance the revision.

Widen dirty.

Bump revision.

在文件 EditableTarget.h 第 185 行定义.

引用了 bumpRevision(), widenDirty(), x , 以及 y.

revision()

std::uint64_t eve::editing::EditableTargetState::revision ( ) const

inlineoverridevirtual

Return the current revision.

实现了 eve::editing::IEditableTarget.

在文件 EditableTarget.h 第 166 行定义.

被这些函数引用 eve::ui_editing::UiDocumentPreviewService::anchorGizmo(), eve::ui_editor::UiThemeEditor::applyPreviewHost(), eve::spritestack_editing::SpriteStackBakeRuntime::bake(), eve::building_editing::BuildingEdgeCurveDragSession::beginDrag(), eve::procgen_editing::SplinePathDragSession::beginDrag(), eve::decal_editing::DecalGizmoPreviewService::build(), eve::procgen_editing::SplinePathGizmoBuilder::build(), eve::editor::UiSkinPreviewPlanner::build(), eve::ui_editing::UiDocumentPreviewService::build(), eve::ui_editing::UiThemePreviewService::build(), eve::virtualgeometry_editing::VirtualGeometryBuildRuntime::build(), eve::definitions_editing::DefinitionSchemaFormTarget::currentRevision(), eve::scene_editing::ScenePropertyProvider::currentRevision(), eve::building_editing::BuildingEdgeCurveDragSession::finishDrag(), eve::procgen_editing::SplinePathDragSession::finishDrag(), eve::camera_editing::CameraPreview::gizmo(), eve::map_editing::MapObjectImporter::plan(), eve::audio_editing::AudioEffectChainPublisher::publish(), eve::avatar_editing::AvatarDocumentRuntime::publish(), eve::biome_editing::BiomeDocumentRuntime::publish(), eve::camera_editing::CameraDocumentRuntime::publish(), eve::housegen_editing::HouseGenPreviewRuntime::publish(), eve::map_editing::MapRoadMeshPublisher::publish(), eve::stylize_editing::MeshVfxPreviewRuntime::publish(), eve::stylize_editing::StylizeRecipeRuntime::publish(), eve::voxel_editing::VoxelPaletteRuntime::publish(), eve::hd2d_editing::Hd2dDocumentRuntime::publishSprite(), eve::hd2d_editing::Hd2dDocumentRuntime::publishTileMap(), eve::editor::StylizeOffscreenPreviewService::render(), eve::editor::UiOffscreenPreviewRenderer::render(), eve::ui_editor::UiThemeEditor::revision(), eve::audio_editor::AudioSourceEditor::setProperty(), setRevision(), eve::building_editing::BuildingEdgeCurveDragSession::updateDrag() , 以及 eve::procgen_editing::SplinePathDragSession::updateDrag().

revisionValue()

Revision eve::editing::EditableTargetState::revisionValue ( ) const

inlinenoexcept

Return the revision as the shared protocol revision type.

在文件 EditableTarget.h 第 169 行定义.

被这些函数引用 eve::material_editing::MaterialBatchTarget::applyDomainOperation(), eve::procgen_editing::SplinePathDocument::applyDomainOperation(), eve::building_editing::BuildingPlacementTarget::cloneDomainState(), eve::avatar_editing::AvatarDocumentTarget::currentRevision(), eve::hd2d_editing::Hd2dDocumentTarget::currentRevision(), eve::biome_editing::BiomeDocumentTarget::currentRevision(), eve::procgen_editing::TextureRecipeTarget::currentRevision(), eve::sceneloader_editing::SceneImportTarget::currentRevision(), eve::voxel_editing::VoxelCatalogTarget::currentRevision(), eve::voxel_editing::VoxelPaletteTarget::currentRevision(), eve::archspace_editing::ArchSpaceDocumentTarget::currentRevision(), eve::audio_editing::AudioSourceTarget::currentRevision(), eve::camera_editing::CameraDocumentTarget::currentRevision(), eve::decal_editing::DecalDocumentTarget::currentRevision(), eve::editor::ProjectSettingsTarget::currentRevision(), eve::fluids_editing::FluidSimulationTarget::currentRevision(), eve::fluids_editing::SurfaceFluidTarget::currentRevision(), eve::fluids_editing::VolumeFluidTarget::currentRevision(), eve::gpuagents_editing::GpuAgentsDocumentTarget::currentRevision(), eve::lighting_editing::LightingPropertyTargetBase::currentRevision(), eve::material_editing::MaterialBatchTarget::currentRevision(), eve::material_editing::MaterialDocumentTarget::currentRevision(), eve::physics_editing::PhysicsColliderTarget::currentRevision(), eve::physics_editing::PhysicsJointTarget::currentRevision(), eve::housegen_editing::HouseGenDocumentTarget::currentRevision(), eve::spritestack_editing::SpriteStackDocumentTarget::currentRevision(), eve::stylize_editing::MeshVfxAssetTarget::currentRevision(), eve::stylize_editing::StylizeRecipeTarget::currentRevision(), eve::ui_editing::UiDocumentTarget::currentRevision(), eve::ui_editing::UiThemeCatalogTarget::currentRevision(), eve::virtualgeometry_editing::VirtualGeometryDocumentTarget::currentRevision(), eve::animation_editing::AnimationClipDocumentTarget::describe(), eve::archspace_editing::ArchSpaceDocumentTarget::describe(), eve::audio_editing::AudioEffectChainTarget::describe(), eve::audio_editing::AudioSourceTarget::describe(), eve::audio_editing::AudioMixerTarget::describe(), eve::avatar_editing::AvatarDocumentTarget::describe(), eve::camera_editing::CameraDocumentTarget::describe(), eve::crowd_editing::CrowdDocumentTarget::describe(), eve::decal_editing::DecalDocumentTarget::describe(), eve::definitions_editing::DefinitionDocument::describe(), eve::editor::EditorCurveDocument::describe(), eve::editor::PluginPermissionTarget::describe(), eve::editor::ProjectSettingsTarget::describe(), eve::fluids_editing::FluidSimulationTarget::describe(), eve::fluids_editing::SurfaceFluidTarget::describe(), eve::fluids_editing::VolumeFluidTarget::describe(), eve::gpuagents_editing::GpuAgentsDocumentTarget::describe(), eve::lighting_editing::LightingPropertyTargetBase::describe(), eve::material_editing::MaterialBatchTarget::describe(), eve::material_editing::MaterialDocumentTarget::describe(), eve::hd2d_editing::Hd2dDocumentTarget::describe(), eve::map_editing::MapDocumentTarget::describe(), eve::physics_editing::PhysicsColliderTarget::describe(), eve::physics_editing::PhysicsJointTarget::describe(), eve::biome_editing::BiomeDocumentTarget::describe(), eve::housegen_editing::HouseGenDocumentTarget::describe(), eve::procgen_editing::SplinePathDocument::describe(), eve::procgen_editing::TextureRecipeTarget::describe(), eve::scene_editing::SceneTargetBase::describe(), eve::sceneloader_editing::SceneImportTarget::describe(), eve::social_editing::SocialDocumentTarget::describe(), eve::spritestack_editing::SpriteStackDocumentTarget::describe(), eve::stylize_editing::MeshVfxAssetTarget::describe(), eve::stylize_editing::StylizeRecipeTarget::describe(), eve::ui_editing::UiDocumentTarget::describe(), eve::ui_editing::UiThemeCatalogTarget::describe(), eve::virtualgeometry_editing::VirtualGeometryDocumentTarget::describe(), eve::voxel_editing::VoxelCatalogTarget::describe(), eve::voxel_editing::VoxelPaletteTarget::describe(), eve::building_editing::BuildingPlacementTarget::edgeCubicBezierGizmo(), eve::archspace_editing::ArchSpaceDocumentTarget::gizmo(), eve::editor::EditorCurveDocument::loadSnapshot(), eve::procgen_editing::SplinePathDocument::loadSnapshot(), eve::building_editing::BuildingPlacementTarget::makeUpdateEdgeCubicBezier(), eve::stylize_editing::MeshVfxAssetTarget::operator=(), eve::crowd_editing::CrowdDocumentTarget::overlay(), eve::building_editing::BuildingPlacementTarget::preview(), eve::animation_editing::AnimationClipDocumentTarget::preview(), eve::editor::EditorCurveDocument::preview(), eve::fluids_editing::FluidSimulationTarget::previewBudget(), eve::fluids_editing::VolumeFluidTarget::previewBudget(), eve::building_editing::BuildingPlacementTarget::previewEdgeCubicBezier(), eve::animation_editing::AnimationClipDocumentTarget::previewRetarget() , 以及 eve::map_editing::MapDocumentTarget::previewRoad().

setDirtyRegion()

void eve::editing::EditableTargetState::setDirtyRegion ( const EditRegion &  region )

inlineprotected

Replace the dirty region wholesale, without advancing the revision.

在文件 EditableTarget.h 第 183 行定义.

被这些函数引用 eve::map_editing::MapDocumentTarget::commitDomainState(), eve::scene_editing::SceneTargetBase::commitDomainState() , 以及 eve::stylize_editing::MeshVfxAssetTarget::operator=().

setRevision()

void eve::editing::EditableTargetState::setRevision ( Revision  revision )

inlineprotected

Adopt a revision observed elsewhere, without advancing it.

在文件 EditableTarget.h 第 181 行定义.

引用了 revision().

被这些函数引用 eve::procgen_editing::SplinePathDocument::applyDomainOperation(), eve::map_editing::MapDocumentTarget::commitDomainState(), eve::scene_editing::SceneTargetBase::commitDomainState(), eve::animation_editing::AnimationClipDocumentTarget::loadSnapshot(), eve::editor::EditorCurveDocument::loadSnapshot(), eve::procgen_editing::SplinePathDocument::loadSnapshot() , 以及 eve::stylize_editing::MeshVfxAssetTarget::operator=().

widenDirty() [1/3]

void eve::editing::EditableTargetState::widenDirty ( )

inlineprotected

Mark an unknown area dirty without advancing the revision.

在文件 EditableTarget.h 第 177 行定义.

引用了 eve::editing::EditRegion::include().

被这些函数引用 eve::avatar_editing::AvatarDocumentTarget::applyDomainOperation(), eve::hd2d_editing::Hd2dDocumentTarget::applyDomainOperation(), eve::biome_editing::BiomeDocumentTarget::applyDomainOperation(), eve::procgen_editing::TextureRecipeTarget::applyDomainOperation(), eve::sceneloader_editing::SceneImportTarget::applyDomainOperation(), eve::voxel_editing::VoxelCatalogTarget::applyDomainOperation(), eve::voxel_editing::VoxelPaletteTarget::applyDomainOperation(), eve::animation_editing::AnimationClipDocumentTarget::applyDomainOperation(), eve::archspace_editing::ArchSpaceDocumentTarget::applyDomainOperation(), eve::audio_editing::AudioEffectChainTarget::applyDomainOperation(), eve::audio_editing::AudioSourceTarget::applyDomainOperation(), eve::audio_editing::AudioMixerTarget::applyDomainOperation(), eve::building_editing::BuildingPlacementTarget::applyDomainOperation(), eve::camera_editing::CameraDocumentTarget::applyDomainOperation(), eve::crowd_editing::CrowdDocumentTarget::applyDomainOperation(), eve::decal_editing::DecalDocumentTarget::applyDomainOperation(), eve::definitions_editing::DefinitionDocument::applyDomainOperation(), eve::editor::EditorCurveDocument::applyDomainOperation(), eve::editor::PluginPermissionTarget::applyDomainOperation(), eve::editor::ProjectSettingsTarget::applyDomainOperation(), eve::fluids_editing::FluidSimulationTarget::applyDomainOperation(), eve::fluids_editing::SurfaceFluidTarget::applyDomainOperation(), eve::fluids_editing::VolumeFluidTarget::applyDomainOperation(), eve::lighting_editing::LightingPropertyTargetBase::applyDomainOperation(), eve::material_editing::MaterialDocumentTarget::applyDomainOperation(), eve::map_editing::MapDocumentTarget::applyDomainOperation(), eve::physics_editing::PhysicsColliderTarget::applyDomainOperation(), eve::physics_editing::PhysicsJointTarget::applyDomainOperation(), eve::housegen_editing::HouseGenDocumentTarget::applyDomainOperation(), eve::procgen_editing::SplinePathDocument::applyDomainOperation(), eve::scene_editing::SceneTargetBase::applyDomainOperation(), eve::social_editing::SocialDocumentTarget::applyDomainOperation(), eve::spritestack_editing::SpriteStackDocumentTarget::applyDomainOperation(), eve::stylize_editing::MeshVfxAssetTarget::applyDomainOperation(), eve::stylize_editing::StylizeRecipeTarget::applyDomainOperation(), eve::ui_editing::UiDocumentTarget::applyDomainOperation(), eve::ui_editing::UiThemeCatalogTarget::applyDomainOperation(), eve::virtualgeometry_editing::VirtualGeometryDocumentTarget::applyDomainOperation(), eve::building_editing::BuildingPlacementTarget::commitDomainState(), eve::audio_editing::AudioEffectChainTarget::loadSnapshot(), eve::crowd_editing::CrowdDocumentTarget::loadSnapshot(), eve::editor::PluginPermissionTarget::loadSnapshot(), eve::editor::ProjectSettingsTarget::loadSnapshot(), eve::social_editing::SocialDocumentTarget::loadSnapshot(), markDirty(), markDirty(), markDirty(), eve::definitions_editing::DefinitionDocument::setJson(), eve::definitions_editing::DefinitionDocument::setReferences(), eve::definitions_editing::DefinitionDocument::setVersion() , 以及 eve::level_editing::TileBufferTarget::writeInt().

widenDirty() [2/3]

void eve::editing::EditableTargetState::widenDirty ( const EditRegion &  region )

inlineprotected

Widen the dirty region without advancing the revision.

在文件 EditableTarget.h 第 175 行定义.

引用了 eve::editing::EditRegion::include().

widenDirty() [3/3]

void eve::editing::EditableTargetState::widenDirty ( int  x, int  y  )

inlineprotected

Widen the dirty region without advancing the revision.

在文件 EditableTarget.h 第 173 行定义.

引用了 eve::editing::EditRegion::include(), x , 以及 y.

被这些函数引用 eve::procgen_editing::SplinePathDocument::applyDomainOperation() , 以及 eve::animation_editing::AnimationClipDocumentTarget::loadSnapshot().

---

该类的文档由以下文件生成:

• src/modules/editing/EditableTarget.h
