Candidate-first material operation target with live commit/undo publication. 更多...

#include <MaterialTarget.h>

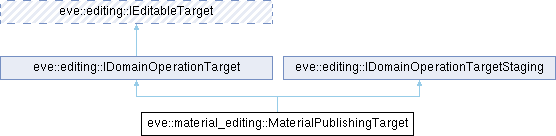

类 eve::material_editing::MaterialPublishingTarget 继承关系图:

Public 成员函数
	MaterialPublishingTarget (std::string id, IMaterialRuntimeSink *sink)
	Create an owned material document bound to a non-owning runtime sink.

TargetId	targetId () const override
	Target id.

std::uint64_t	revision () const override
	Revision.

EditRegion	dirtyRegion () const override
	Dirty region.

void	clearDirtyRegion () override
	Clears dirty region.

TargetDescriptor	describe () const override
	Describe.

void *	queryCapability (const CapabilityId &capability) override
	Forward property and snapshot capabilities from the authoring document. @ownership Borrowed from this target; callers must not delete the returned capability. @lifetime Valid until this target is destroyed or its document is replaced.

Result< void >	applyDomainOperation (const DomainOperation &operation) override
	Applies domain operation.

std::unique_ptr< IDomainOperationTarget >	cloneDomainState () const override
	Clones domain state.

Result< void >	commitDomainState (std::unique_ptr< IDomainOperationTarget > candidate) override
	Commits domain state.

MaterialDocumentTarget &	authoringTarget ()
	Mutable authoring document used by property inspectors.

const MaterialDocumentTarget &	authoringTarget () const
	Immutable authoring document used by validators and previews.

Result< void >	reloadSnapshot (const EditorValue &snapshot)
	Atomically parse and publish a persisted material snapshot.

Public 成员函数继承自 eve::editing::IDomainOperationTarget
	~IDomainOperationTarget () override=default
	Releases IDomainOperationTarget resources.

Public 成员函数继承自 eve::editing::IEditableTarget
virtual	~IEditableTarget ()=default
	Releases IEditableTarget resources.

virtual void *	queryCapability (const CapabilityId &capability)
	Query an optional stable capability.

template<class C >
eve::OptionalRef< C >	capability ()
	Query a capability through its interface-owned stable identity.

template<class C >
eve::OptionalRef< const C >	capability () const
	Capability.

template<class C >
C *	query ()
	Queries query.

template<class C >
const C *	query () const
	Queries query.

Public 成员函数继承自 eve::editing::IDomainOperationTargetStaging
virtual	~IDomainOperationTargetStaging ()=default
	Releases IDomainOperationTargetStaging resources.

详细描述

Candidate-first material operation target with live commit/undo publication.

在文件 MaterialTarget.h 第 95 行定义.

构造及析构函数说明

◆ MaterialPublishingTarget()

eve::material_editing::MaterialPublishingTarget::MaterialPublishingTarget	(	std::string	id,
		IMaterialRuntimeSink *	sink
	)

Create an owned material document bound to a non-owning runtime sink.

在文件 MaterialPublishingTarget.cpp 第 8 行定义.

成员函数说明

◆ applyDomainOperation()

Result< void > eve::material_editing::MaterialPublishingTarget::applyDomainOperation ( const DomainOperation & operation )

overridevirtual

Applies domain operation.

实现了 eve::editing::IDomainOperationTarget.

在文件 MaterialPublishingTarget.cpp 第 21 行定义.

引用了 eve::material_editing::MaterialDocumentTarget::applyDomainOperation(), cloneDomainState(), commitDomainState() , 以及 operation.

◆ authoringTarget() [1/2]

MaterialDocumentTarget & eve::material_editing::MaterialPublishingTarget::authoringTarget ( )

inline

Mutable authoring document used by property inspectors.

在文件 MaterialTarget.h 第 124 行定义.

被这些函数引用 eve::editor::MaterialStudioController::beginInteraction(), eve::editor::MaterialStudioController::cancelInteraction(), eve::editor::MaterialStudioController::commitInteraction() , 以及 eve::editor::MaterialStudioController::refreshPreview().

◆ authoringTarget() [2/2]

const MaterialDocumentTarget & eve::material_editing::MaterialPublishingTarget::authoringTarget ( ) const

inline

Immutable authoring document used by validators and previews.

在文件 MaterialTarget.h 第 126 行定义.

◆ clearDirtyRegion()

void eve::material_editing::MaterialPublishingTarget::clearDirtyRegion ( )

inlineoverridevirtual

Clears dirty region.

实现了 eve::editing::IEditableTarget.

在文件 MaterialTarget.h 第 107 行定义.

◆ cloneDomainState()

std::unique_ptr< IDomainOperationTarget > eve::material_editing::MaterialPublishingTarget::cloneDomainState ( ) const

overridevirtual

Clones domain state.

实现了 eve::editing::IDomainOperationTargetStaging.

在文件 MaterialPublishingTarget.cpp 第 30 行定义.

被这些函数引用 applyDomainOperation().

◆ commitDomainState()

Result< void > eve::material_editing::MaterialPublishingTarget::commitDomainState ( std::unique_ptr< IDomainOperationTarget > candidate )

overridevirtual

Commits domain state.

实现了 eve::editing::IDomainOperationTargetStaging.

在文件 MaterialPublishingTarget.cpp 第 36 行定义.

引用了 eve::Result< T >::ok(), eve::material_editing::IMaterialRuntimeSink::publish() , 以及 targetId().

被这些函数引用 applyDomainOperation() , 以及 reloadSnapshot().

◆ describe()

TargetDescriptor eve::material_editing::MaterialPublishingTarget::describe ( ) const

overridevirtual

Describe.

重载 eve::editing::IEditableTarget .

在文件 MaterialPublishingTarget.cpp 第 11 行定义.

引用了 eve::material_editing::MaterialDocumentTarget::describe(), descriptor , 以及 eve::editing::TargetDescriptor::type.

◆ dirtyRegion()

EditRegion eve::material_editing::MaterialPublishingTarget::dirtyRegion ( ) const

inlineoverridevirtual

Dirty region.

实现了 eve::editing::IEditableTarget.

在文件 MaterialTarget.h 第 105 行定义.

◆ queryCapability()

void * eve::material_editing::MaterialPublishingTarget::queryCapability ( const CapabilityId & capability )

override

Forward property and snapshot capabilities from the authoring document. @ownership Borrowed from this target; callers must not delete the returned capability. @lifetime Valid until this target is destroyed or its document is replaced.

在文件 MaterialPublishingTarget.cpp 第 17 行定义.

引用了 eve::editing::IEditableTarget::capability() , 以及 eve::material_editing::MaterialDocumentTarget::queryCapability().
