UI-neutral versioned definition asset and cross-reference model. 更多...

#include <DefinitionTarget.h>

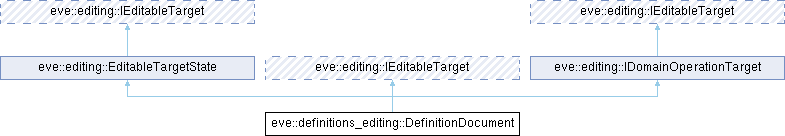

类 eve::definitions_editing::DefinitionDocument 继承关系图:

Public 类型
using	ReferenceResolver = std::function< bool(const std::string &type, const std::string &id)>

using	SchemaValidator = std::function< std::vector< EditorDiagnostic >(const std::string &type, int version, const std::string &json)>

Public 成员函数
	DefinitionDocument (std::string type, std::string id, int version=1)
	Construct an empty JSON-object definition with stable identity.

TargetId	targetId () const override
	Target id.

TargetDescriptor	describe () const override
	Describe.

void *	queryCapability (const CapabilityId &) override
	Query an optional target capability.

Result< void >	applyDomainOperation (const DomainOperation &operation) override
	Applies domain operation.

Result< void >	setJson (std::string json)
	Atomically replace canonical payload text after basic JSON-shape validation.

Result< void >	setVersion (int version)
	Replace the schema version with a positive value.

Result< void >	setReferences (std::vector< DefinitionReferenceField > references)
	Replace editor-extracted cross-reference fields.

Result< DomainOperation >	makeSetField (const std::string &field, const EditorValue &value) const
	Plan a reversible top-level field assignment from a schema form.

std::vector< EditorDiagnostic >	validate (const SchemaValidator &schema, const ReferenceResolver &references) const
	Run schema and cross-reference diagnostics without mutating content.

EditorValue	snapshotValue () const
	Capture deterministic content for DocumentService persistence.

Result< void >	loadSnapshot (const EditorValue &snapshot)
	Atomically load a version-one editor snapshot.

const std::string &	type () const
	Return definition type/schema id.

const std::string &	id () const
	Return stable definition id.

int	version () const
	Return schema version.

const std::string &	json () const
	Return JSON payload text.

editing::Revision	documentRevision () const
	Return current editor revision.

Public 成员函数继承自 eve::editing::EditableTargetState
	EditableTargetState (Revision initial=1)
	Constructs the shared state with an explicit initial revision.

EditRegion	dirtyRegion () const override
	Return the accumulated dirty region.

void	clearDirtyRegion () override
	Discard the dirty region; the revision does not change.

std::uint64_t	revision () const override
	Return the current revision.

Revision	revisionValue () const noexcept
	Return the revision as the shared protocol revision type.

Public 成员函数继承自 eve::editing::IEditableTarget
virtual	~IEditableTarget ()=default
	Releases IEditableTarget resources.

template<class C >
eve::OptionalRef< C >	capability ()
	Query a capability through its interface-owned stable identity.

template<class C >
eve::OptionalRef< const C >	capability () const
	Capability.

template<class C >
C *	query ()
	Queries query.

template<class C >
const C *	query () const
	Queries query.

Public 成员函数继承自 eve::editing::IDomainOperationTarget
	~IDomainOperationTarget () override=default
	Releases IDomainOperationTarget resources.

额外继承的成员函数
Protected 成员函数继承自 eve::editing::EditableTargetState
void	widenDirty (int x, int y)
	Widen the dirty region without advancing the revision.

void	widenDirty (const EditRegion &region)
	Widen the dirty region without advancing the revision.

void	widenDirty ()
	Mark an unknown area dirty without advancing the revision.

void	bumpRevision ()
	Advance the revision without touching the dirty region.

void	setRevision (Revision revision)
	Adopt a revision observed elsewhere, without advancing it.

void	setDirtyRegion (const EditRegion &region)
	Replace the dirty region wholesale, without advancing the revision.

void	markDirty (int x, int y)
	Include one cell in the dirty region and advance the revision.

void	markDirty (const EditRegion &region)
	Include a whole region and advance the revision.

void	markDirty ()
	Mark an unknown area dirty and advance the revision.

详细描述

UI-neutral versioned definition asset and cross-reference model.

在文件 DefinitionTarget.h 第 33 行定义.

成员类型定义说明

◆ ReferenceResolver

using eve::definitions_editing::DefinitionDocument::ReferenceResolver = std::function<bool(const std::string& type, const std::string& id)>

在文件 DefinitionTarget.h 第 37 行定义.

◆ SchemaValidator

using eve::definitions_editing::DefinitionDocument::SchemaValidator = std::function<std::vector<EditorDiagnostic>(const std::string& type, int version, const std::string& json)>

在文件 DefinitionTarget.h 第 38 行定义.

构造及析构函数说明

◆ DefinitionDocument()

eve::definitions_editing::DefinitionDocument::DefinitionDocument	(	std::string	type,
		std::string	id,
		int	version = `1`
	)

Construct an empty JSON-object definition with stable identity.

在文件 DefinitionTarget.cpp 第 31 行定义.

成员函数说明

◆ applyDomainOperation()

Result< void > eve::definitions_editing::DefinitionDocument::applyDomainOperation ( const DomainOperation & operation )

overridevirtual

Applies domain operation.

实现了 eve::editing::IDomainOperationTarget.

在文件 DefinitionTarget.cpp 第 39 行定义.

引用了 eve::editing::EditableTargetState::bumpRevision(), eve::editing::editorValueFromJson(), eve::editing::editorValueToJson(), operation, path , 以及 eve::editing::EditableTargetState::widenDirty().

◆ describe()

TargetDescriptor eve::definitions_editing::DefinitionDocument::describe ( ) const

overridevirtual

Describe.

重载 eve::editing::IEditableTarget .

在文件 DefinitionTarget.cpp 第 35 行定义.

引用了 eve::editing::EditableTargetState::revisionValue().

◆ documentRevision()

editing::Revision eve::definitions_editing::DefinitionDocument::documentRevision ( ) const

inline

Return current editor revision.

在文件 DefinitionTarget.h 第 78 行定义.

◆ id()

const std::string & eve::definitions_editing::DefinitionDocument::id ( ) const

inline

Return stable definition id.

在文件 DefinitionTarget.h 第 72 行定义.

被这些函数引用 eve::definitions_editing::DefinitionRuntimePublisher::publish().

◆ json()

const std::string & eve::definitions_editing::DefinitionDocument::json ( ) const

inline

Return JSON payload text.

在文件 DefinitionTarget.h 第 76 行定义.

被这些函数引用 eve::definitions_editing::DefinitionRuntimePublisher::publish(), eve::definitions_editing::DefinitionSchemaFormTarget::read(), setJson() , 以及 eve::definitions_editing::DefinitionSchemaFormTarget::validate().

◆ loadSnapshot()

Result< void > eve::definitions_editing::DefinitionDocument::loadSnapshot ( const EditorValue & snapshot )

Atomically load a version-one editor snapshot.

在文件 DefinitionTarget.cpp 第 167 行定义.

引用了 id, eve::Result< void >::ok(), path, required, setJson(), setReferences(), type , 以及 value.

◆ makeSetField()

Result< DomainOperation > eve::definitions_editing::DefinitionDocument::makeSetField	(	const std::string &	field,
		const EditorValue &	value
	)		const

Plan a reversible top-level field assignment from a schema form.

在文件 DefinitionTarget.cpp 第 94 行定义.

引用了 current, eve::editing::editorValueFromJson(), operation, eve::editing::DomainOperation::type , 以及 value.

被这些函数引用 eve::definitions_editing::DefinitionSchemaFormTarget::makeSet().

◆ queryCapability()

void * eve::definitions_editing::DefinitionDocument::queryCapability ( const CapabilityId & )

inlineoverridevirtual

Query an optional target capability.

返回: Borrowed pointer owned by this target, or null. @lifetime Valid until this target is destroyed or mutated.

重载 eve::editing::IEditableTarget .

在文件 DefinitionTarget.h 第 49 行定义.

◆ setJson()

Result< void > eve::definitions_editing::DefinitionDocument::setJson ( std::string json )

Atomically replace canonical payload text after basic JSON-shape validation.

在文件 DefinitionTarget.cpp 第 61 行定义.

引用了 eve::editing::EditableTargetState::bumpRevision(), json() , 以及 eve::editing::EditableTargetState::widenDirty().

被这些函数引用 loadSnapshot().

◆ setReferences()

Result< void > eve::definitions_editing::DefinitionDocument::setReferences ( std::vector< DefinitionReferenceField > references )

Replace editor-extracted cross-reference fields.

在文件 DefinitionTarget.cpp 第 81 行定义.

引用了 eve::editing::EditableTargetState::bumpRevision(), paths, reference , 以及 eve::editing::EditableTargetState::widenDirty().

被这些函数引用 loadSnapshot().

◆ setVersion()

Result< void > eve::definitions_editing::DefinitionDocument::setVersion ( int version )

Replace the schema version with a positive value.

在文件 DefinitionTarget.cpp 第 71 行定义.

引用了 eve::editing::EditableTargetState::bumpRevision(), version() , 以及 eve::editing::EditableTargetState::widenDirty().

◆ snapshotValue()

EditorValue eve::definitions_editing::DefinitionDocument::snapshotValue ( ) const

Capture deterministic content for DocumentService persistence.

在文件 DefinitionTarget.cpp 第 157 行定义.

引用了 reference.

◆ targetId()

TargetId eve::definitions_editing::DefinitionDocument::targetId ( ) const

inlineoverridevirtual

Target id.

实现了 eve::editing::IEditableTarget.

在文件 DefinitionTarget.h 第 45 行定义.

◆ type()

const std::string & eve::definitions_editing::DefinitionDocument::type ( ) const

inline

Return definition type/schema id.

在文件 DefinitionTarget.h 第 70 行定义.

被这些函数引用 eve::definitions_editing::DefinitionRuntimePublisher::publish() , 以及 eve::definitions_editing::DefinitionSchemaFormTarget::validate().

◆ validate()

std::vector< EditorDiagnostic > eve::definitions_editing::DefinitionDocument::validate	(	const SchemaValidator &	schema,
		const ReferenceResolver &	references
	)		const

Run schema and cross-reference diagnostics without mutating content.

在文件 DefinitionTarget.cpp 第 121 行定义.

引用了 eve::InvalidArgument, eve::NotFound, eve::PreconditionViolation, reference , 以及 eve::editing::ruleDiagnostic().

◆ version()

int eve::definitions_editing::DefinitionDocument::version ( ) const

inline

Return schema version.

在文件 DefinitionTarget.h 第 74 行定义.

被这些函数引用 eve::definitions_editing::DefinitionRuntimePublisher::publish(), setVersion() , 以及 eve::definitions_editing::DefinitionSchemaFormTarget::validate().

该类的文档由以下文件生成:

src/modules/definitions/editing/DefinitionTarget.h
src/modules/definitions/editing/DefinitionTarget.cpp
