Revisioned Params document for a script-hosted procedural generator. 更多...

#include <ProcgenScriptTarget.h>

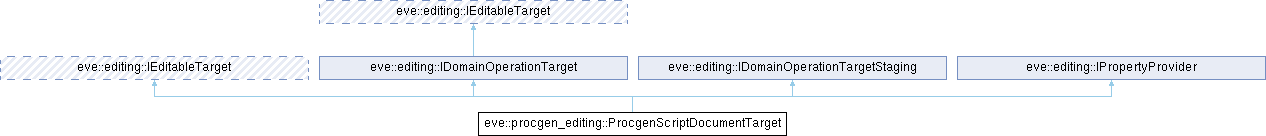

类 eve::procgen_editing::ProcgenScriptDocumentTarget 继承关系图:

Public 成员函数
	ProcgenScriptDocumentTarget (std::string id)
	Construct an empty generator document.

editing::TargetId	targetId () const override
	Target id.

std::uint64_t	revision () const override
	Revision.

editing::EditRegion	dirtyRegion () const override
	Dirty region.

void	clearDirtyRegion () override
	Clears dirty region.

editing::TargetDescriptor	describe () const override
	Describe.

void *	queryCapability (const editing::CapabilityId &) override
	Query Inspector property capability.

Result< void >	applyDomainOperation (const editing::DomainOperation &) override
	Applies domain operation.

std::unique_ptr< editing::IDomainOperationTarget >	cloneDomainState () const override
	Clones domain state.

Result< void >	commitDomainState (std::unique_ptr< editing::IDomainOperationTarget >) override
	Commits domain state.

eve::Result< eve::Revision >	currentRevision (const editing::SelectionSnapshot &) const override
	Current revision.

editing::PropertySchema	schema (const editing::SelectionSnapshot &) const override
	Schema.

editing::PropertyReadResult	read (const editing::SelectionSnapshot &, const editing::PropertyPath &) const override
	Reads .

Result< editing::DomainOperation >	makeSet (const editing::SelectionSnapshot &, const editing::PropertyPath &, const EditorValue &, editing::PropertySetMode) const override
	Make set.

Result< editing::DomainOperation >	makeReset (const editing::SelectionSnapshot &, const editing::PropertyPath &) const override
	Make reset.

Result< editing::DomainOperation >	makeLoadModule (ProcgenScriptModuleSpec spec) const
	Replace module identity and schema, remapping values (drop unknown, fill defaults).

const std::string &	uri () const
	Uri.

const std::string &	moduleId () const
	Module id.

const std::string &	displayName () const
	Display name.

const std::string &	kind () const
	Kind.

const std::vector< procgen::ParamDescriptor > &	params () const
	Params.

const EditorValue::Object &	values () const
	Values.

const procgen::ParamDescriptor *	findParam (const std::string &key) const
	Find one reflected parameter by stable key.

std::vector< EditorDiagnostic >	validate () const
	Validate.

EditorValue	snapshotValue () const
	Snapshot value.

Result< void >	loadSnapshot (const EditorValue &)
	Loads snapshot.

Public 成员函数继承自 eve::editing::IEditableTarget
virtual	~IEditableTarget ()=default
	Releases IEditableTarget resources.

template<class C >
eve::OptionalRef< C >	capability ()
	Query a capability through its interface-owned stable identity.

template<class C >
eve::OptionalRef< const C >	capability () const
	Capability.

template<class C >
C *	query ()
	Queries query.

template<class C >
const C *	query () const
	Queries query.

Public 成员函数继承自 eve::editing::IDomainOperationTarget
	~IDomainOperationTarget () override=default
	Releases IDomainOperationTarget resources.

Public 成员函数继承自 eve::editing::IDomainOperationTargetStaging
virtual	~IDomainOperationTargetStaging ()=default
	Releases IDomainOperationTargetStaging resources.

virtual Result< void >	commitDomainState (std::unique_ptr< IDomainOperationTarget > candidate)=0
	Atomically publish a validated candidate state.

Public 成员函数继承自 eve::editing::IPropertyProvider
virtual	~IPropertyProvider ()=default
	Releases IPropertyProvider resources.

静态 Public 成员函数
static editing::CapabilityId	propertyCapabilityId ()
	Capability identity published by describe() for Inspector editing.

static Result< ProcgenScriptModuleSpec >	parseSpec (std::string uri, std::string id, std::string displayName, std::string kind, const EditorValue &schema)
	Parse a schema array into a module spec.

静态 Public 成员函数继承自 eve::editing::IPropertyProvider
static CapabilityId	editingCapabilityId ()
	Stable capability identity for generic property editing.

详细描述

Revisioned Params document for a script-hosted procedural generator.

The document is the unique owner of parameter values. Preview PointSets are not stored here; the editor copies them after a successful script rebuild.

@ownership Document owns schema and values. Snapshots are copied trees. @threadaffinity Owner thread only. @reentrancy No unknown callbacks.

在文件 ProcgenScriptTarget.h 第 44 行定义.

构造及析构函数说明

◆ ProcgenScriptDocumentTarget()

eve::procgen_editing::ProcgenScriptDocumentTarget::ProcgenScriptDocumentTarget ( std::string id )

explicit

Construct an empty generator document.

参数

id	Stable target identity.

在文件 ProcgenScriptTarget.cpp 第 73 行定义.

成员函数说明

◆ applyDomainOperation()

Result< void > eve::procgen_editing::ProcgenScriptDocumentTarget::applyDomainOperation ( const editing::DomainOperation & operation )

overridevirtual

Applies domain operation.

实现了 eve::editing::IDomainOperationTarget.

在文件 ProcgenScriptTarget.cpp 第 445 行定义.

引用了 eve::procgen_editing::detail::field(), eve::editing::Value::getIf(), eve::editing::EditRegion::include(), operation, parseSpec(), validate() , 以及 values().

被这些函数引用 loadSnapshot().

◆ clearDirtyRegion()

void eve::procgen_editing::ProcgenScriptDocumentTarget::clearDirtyRegion ( )

inlineoverridevirtual

Clears dirty region.

实现了 eve::editing::IEditableTarget.

在文件 ProcgenScriptTarget.h 第 65 行定义.

◆ cloneDomainState()

std::unique_ptr< editing::IDomainOperationTarget > eve::procgen_editing::ProcgenScriptDocumentTarget::cloneDomainState ( ) const

overridevirtual

Clones domain state.

实现了 eve::editing::IDomainOperationTargetStaging.

在文件 ProcgenScriptTarget.cpp 第 473 行定义.

◆ commitDomainState()

Result< void > eve::procgen_editing::ProcgenScriptDocumentTarget::commitDomainState ( std::unique_ptr< editing::IDomainOperationTarget > candidate )

override

Commits domain state.

在文件 ProcgenScriptTarget.cpp 第 477 行定义.

◆ currentRevision()

eve::Result< eve::Revision > eve::procgen_editing::ProcgenScriptDocumentTarget::currentRevision ( const editing::SelectionSnapshot & selection ) const

overridevirtual

Current revision.

重载 eve::editing::IPropertyProvider .

在文件 ProcgenScriptTarget.cpp 第 92 行定义.

引用了 eve::Diagnostic::error(), eve::Result< T >::failure(), eve::InvalidArgument , 以及 eve::Result< T >::success().

◆ describe()

editing::TargetDescriptor eve::procgen_editing::ProcgenScriptDocumentTarget::describe ( ) const

overridevirtual

Describe.

重载 eve::editing::IEditableTarget .

在文件 ProcgenScriptTarget.cpp 第 75 行定义.

引用了 propertyCapabilityId().

◆ dirtyRegion()

editing::EditRegion eve::procgen_editing::ProcgenScriptDocumentTarget::dirtyRegion ( ) const

inlineoverridevirtual

Dirty region.

实现了 eve::editing::IEditableTarget.

在文件 ProcgenScriptTarget.h 第 63 行定义.

◆ displayName()

const std::string & eve::procgen_editing::ProcgenScriptDocumentTarget::displayName ( ) const

inline

Display name.

在文件 ProcgenScriptTarget.h 第 110 行定义.

被这些函数引用 parseSpec().

◆ findParam()

const procgen::ParamDescriptor * eve::procgen_editing::ProcgenScriptDocumentTarget::findParam ( const std::string & key ) const

Find one reflected parameter by stable key.

参数

key	Parameter key from the loaded schema.

返回: Borrowed schema descriptor owned by this document, or null when absent. @ownership Borrowed; callers must not delete the pointer. @lifetime Valid until this document is destroyed or loadModule/applyDomainOperation mutates schema. @nullable Yes when the key is unknown.

在文件 ProcgenScriptTarget.cpp 第 136 行定义.

引用了 key , 以及 eve::procgen::ParamDescriptor::key.

◆ kind()

const std::string & eve::procgen_editing::ProcgenScriptDocumentTarget::kind ( ) const

inline

Kind.

在文件 ProcgenScriptTarget.h 第 112 行定义.

被这些函数引用 parseSpec().

◆ loadSnapshot()

Result< void > eve::procgen_editing::ProcgenScriptDocumentTarget::loadSnapshot ( const EditorValue & snapshot )

Loads snapshot.

在文件 ProcgenScriptTarget.cpp 第 491 行定义.

引用了 applyDomainOperation(), eve::editing::EditRegion::clear(), eve::procgen_editing::detail::field(), eve::editing::Value::getIf(), operation , 以及 eve::editing::DomainOperation::target.

◆ makeLoadModule()

Result< editing::DomainOperation > eve::procgen_editing::ProcgenScriptDocumentTarget::makeLoadModule ( ProcgenScriptModuleSpec spec ) const

Replace module identity and schema, remapping values (drop unknown, fill defaults).

在文件 ProcgenScriptTarget.cpp 第 354 行定义.

引用了 eve::editing::applied(), eve::procgen_editing::ProcgenScriptModuleSpec::id, eve::procgen_editing::ProcgenScriptModuleSpec::kind, operation, eve::procgen_editing::ProcgenScriptModuleSpec::params, eve::editing::DomainOperation::type , 以及 validate().

被这些函数引用 eve::procgen_editor::ProcgenScriptEditor::loadModule().

◆ makeReset()

Result< editing::DomainOperation > eve::procgen_editing::ProcgenScriptDocumentTarget::makeReset	(	const editing::SelectionSnapshot &	selection,
		const editing::PropertyPath &	path
	)		const

overridevirtual

Make reset.

实现了 eve::editing::IPropertyProvider.

在文件 ProcgenScriptTarget.cpp 第 415 行定义.

引用了 eve::editing::Absolute, descriptor, eve::editing::PropertySchema::find(), makeSet(), path , 以及 schema().

被这些函数引用 makeSet().

◆ makeSet()

Result< editing::DomainOperation > eve::procgen_editing::ProcgenScriptDocumentTarget::makeSet	(	const editing::SelectionSnapshot &	selection,
		const editing::PropertyPath &	path,
		const EditorValue &	value,
		editing::PropertySetMode	mode
	)		const

overridevirtual

Make set.

实现了 eve::editing::IPropertyProvider.

在文件 ProcgenScriptTarget.cpp 第 387 行定义.

引用了 eve::editing::Absolute, eve::editing::applied(), descriptor, eve::editing::PropertySchema::find(), eve::editing::Value::getIf(), makeReset(), ok, operation, path, payload, eve::editing::Reset, schema(), eve::editing::DomainOperation::type, eve::editing::validatePropertyValue(), value , 以及 values().

被这些函数引用 makeReset() , 以及 eve::procgen_editor::ProcgenScriptEditor::setParam().

◆ moduleId()

const std::string & eve::procgen_editing::ProcgenScriptDocumentTarget::moduleId ( ) const

inline

Module id.

在文件 ProcgenScriptTarget.h 第 108 行定义.

◆ params()

const std::vector< procgen::ParamDescriptor > & eve::procgen_editing::ProcgenScriptDocumentTarget::params ( ) const

inline

Params.

在文件 ProcgenScriptTarget.h 第 114 行定义.

◆ parseSpec()

Result< ProcgenScriptModuleSpec > eve::procgen_editing::ProcgenScriptDocumentTarget::parseSpec	(	std::string	uri,
		std::string	id,
		std::string	displayName,
		std::string	kind,
		const EditorValue &	schema
	)

static

Parse a schema array into a module spec.

参数

schema Array of parameter objects with key/kind/default metadata.

在文件 ProcgenScriptTarget.cpp 第 249 行定义.

被这些函数引用 applyDomainOperation() , 以及 eve::procgen_editor::ProcgenScriptEditor::loadModule().

◆ propertyCapabilityId()

static editing::CapabilityId eve::procgen_editing::ProcgenScriptDocumentTarget::propertyCapabilityId ( )

inlinestatic

Capability identity published by describe() for Inspector editing.

Capability id.

在文件 ProcgenScriptTarget.h 第 53 行定义.

被这些函数引用 describe() , 以及 queryCapability().

◆ queryCapability()

void * eve::procgen_editing::ProcgenScriptDocumentTarget::queryCapability ( const editing::CapabilityId & capability )

overridevirtual

Query Inspector property capability.

返回: Borrowed pointer owned by this target, or null. @lifetime Valid until this target is destroyed or replaced by commitDomainState.

重载 eve::editing::IEditableTarget .

在文件 ProcgenScriptTarget.cpp 第 83 行定义.

引用了 eve::editing::IEditableTarget::capability() , 以及 propertyCapabilityId().

◆ read()

editing::PropertyReadResult eve::procgen_editing::ProcgenScriptDocumentTarget::read	(	const editing::SelectionSnapshot &	selection,
		const editing::PropertyPath &	path
	)		const
