UI-neutral agent/zone/path document with reversible domain operations. 更多...

#include <CrowdDocument.h>

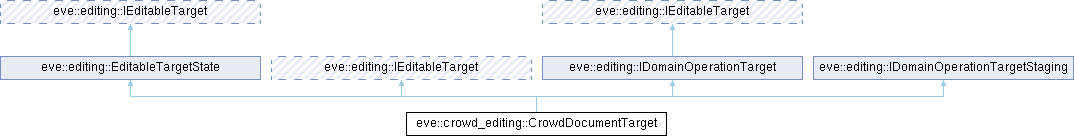

类 eve::crowd_editing::CrowdDocumentTarget 继承关系图:

Public 成员函数
	CrowdDocumentTarget (std::string id)
	Crowd document target.

TargetId	targetId () const override
	Target id.

TargetDescriptor	describe () const override
	Describe.

void *	queryCapability (const CapabilityId &capability) override
	Query an optional target capability.

Result< void >	applyDomainOperation (const DomainOperation &operation) override
	Applies domain operation.

std::unique_ptr< IDomainOperationTarget >	cloneDomainState () const override
	Clones domain state.

Result< void >	commitDomainState (std::unique_ptr< IDomainOperationTarget > candidate) override
	Commits domain state.

std::vector< CrowdAgentRecord >	agents () const
	Enumerate agents in stable-id order.

std::vector< CrowdZoneRecord >	zones () const
	Enumerate zones in stable-id order.

std::vector< CrowdPathRecord >	paths () const
	Enumerate paths in stable-id order.

Result< DomainOperation >	makeSetAgent (const CrowdAgentRecord &record) const
	Plan reversible agent creation or replacement.

Result< DomainOperation >	makeDeleteAgent (const StableId &id) const
	Plan reversible agent deletion.

Result< DomainOperation >	makeSetZone (const CrowdZoneRecord &record) const
	Plan reversible zone creation or replacement.

Result< DomainOperation >	makeDeleteZone (const StableId &id) const
	Plan reversible zone deletion.

Result< DomainOperation >	makeSetPath (const CrowdPathRecord &record) const
	Plan reversible path creation or replacement.

Result< DomainOperation >	makeDeletePath (const StableId &id) const
	Plan reversible path deletion when no agent references it.

std::vector< EditorDiagnostic >	validate () const
	Validate geometry, numeric limits and cross references.

CrowdOverlayResult	overlay (int primitiveBudget=100000) const
	Produce deterministic path, zone and agent overlay primitives.

EditorValue	snapshotValue () const
	Capture deterministic schema-version-one authoring data.

Result< void >	loadSnapshot (const EditorValue &snapshot)
	Atomically load validated authoring data.

Public 成员函数继承自 eve::editing::EditableTargetState
	EditableTargetState (Revision initial=1)
	Constructs the shared state with an explicit initial revision.

EditRegion	dirtyRegion () const override
	Return the accumulated dirty region.

void	clearDirtyRegion () override
	Discard the dirty region; the revision does not change.

std::uint64_t	revision () const override
	Return the current revision.

Revision	revisionValue () const noexcept
	Return the revision as the shared protocol revision type.

Public 成员函数继承自 eve::editing::IEditableTarget
virtual	~IEditableTarget ()=default
	Releases IEditableTarget resources.

template<class C >
eve::OptionalRef< C >	capability ()
	Query a capability through its interface-owned stable identity.

template<class C >
eve::OptionalRef< const C >	capability () const
	Capability.

template<class C >
C *	query ()
	Queries query.

template<class C >
const C *	query () const
	Queries query.

Public 成员函数继承自 eve::editing::IDomainOperationTarget
	~IDomainOperationTarget () override=default
	Releases IDomainOperationTarget resources.

Public 成员函数继承自 eve::editing::IDomainOperationTargetStaging
virtual	~IDomainOperationTargetStaging ()=default
	Releases IDomainOperationTargetStaging resources.

静态 Public 成员函数
static CapabilityId	editorCapabilityId ()
	Stable capability id for crowd agent, zone and path editing.

额外继承的成员函数
Protected 成员函数继承自 eve::editing::EditableTargetState
void	widenDirty (int x, int y)
	Widen the dirty region without advancing the revision.

void	widenDirty (const EditRegion &region)
	Widen the dirty region without advancing the revision.

void	widenDirty ()
	Mark an unknown area dirty without advancing the revision.

void	bumpRevision ()
	Advance the revision without touching the dirty region.

void	setRevision (Revision revision)
	Adopt a revision observed elsewhere, without advancing it.

void	setDirtyRegion (const EditRegion &region)
	Replace the dirty region wholesale, without advancing the revision.

void	markDirty (int x, int y)
	Include one cell in the dirty region and advance the revision.

void	markDirty (const EditRegion &region)
	Include a whole region and advance the revision.

void	markDirty ()
	Mark an unknown area dirty and advance the revision.

详细描述

UI-neutral agent/zone/path document with reversible domain operations.

在文件 CrowdDocument.h 第 80 行定义.

构造及析构函数说明

◆ CrowdDocumentTarget()

eve::crowd_editing::CrowdDocumentTarget::CrowdDocumentTarget ( std::string id )

explicit

Crowd document target.

在文件 CrowdDocument.cpp 第 157 行定义.

成员函数说明

◆ agents()

std::vector< CrowdAgentRecord > eve::crowd_editing::CrowdDocumentTarget::agents ( ) const

Enumerate agents in stable-id order.

在文件 CrowdDocument.cpp 第 206 行定义.

引用了 values.

被这些函数引用 loadSnapshot() , 以及 snapshotValue().

◆ applyDomainOperation()

Result< void > eve::crowd_editing::CrowdDocumentTarget::applyDomainOperation ( const DomainOperation & operation )

overridevirtual

Applies domain operation.

实现了 eve::editing::IDomainOperationTarget.

在文件 CrowdDocument.cpp 第 170 行定义.

引用了 eve::editing::EditableTargetState::bumpRevision(), eve::Result< T >::failure(), id, payload, eve::editing::DomainOperation::payload, eve::editing::DomainOperation::target, type, eve::editing::DomainOperation::type, value , 以及 eve::editing::EditableTargetState::widenDirty().

◆ cloneDomainState()

std::unique_ptr< IDomainOperationTarget > eve::crowd_editing::CrowdDocumentTarget::cloneDomainState ( ) const

overridevirtual

Clones domain state.

实现了 eve::editing::IDomainOperationTargetStaging.

在文件 CrowdDocument.cpp 第 197 行定义.

◆ commitDomainState()

Result< void > eve::crowd_editing::CrowdDocumentTarget::commitDomainState ( std::unique_ptr< IDomainOperationTarget > candidate )

overridevirtual

Commits domain state.

实现了 eve::editing::IDomainOperationTargetStaging.

在文件 CrowdDocument.cpp 第 198 行定义.

◆ describe()

TargetDescriptor eve::crowd_editing::CrowdDocumentTarget::describe ( ) const

overridevirtual

Describe.

重载 eve::editing::IEditableTarget .

在文件 CrowdDocument.cpp 第 159 行定义.

引用了 eve::editing::TargetDescriptor::capabilities, editorCapabilityId(), eve::editing::TargetDescriptor::id, eve::editing::TargetDescriptor::revision, eve::editing::EditableTargetState::revisionValue() , 以及 eve::editing::TargetDescriptor::type.

◆ editorCapabilityId()

static CapabilityId eve::crowd_editing::CrowdDocumentTarget::editorCapabilityId ( )

inlinestatic

Stable capability id for crowd agent, zone and path editing.

在文件 CrowdDocument.h 第 86 行定义.

被这些函数引用 describe() , 以及 queryCapability().

◆ loadSnapshot()

Result< void > eve::crowd_editing::CrowdDocumentTarget::loadSnapshot ( const EditorValue & snapshot )

Atomically load validated authoring data.

在文件 CrowdDocument.cpp 第 296 行定义.

引用了 agents(), eve::editing::EditableTargetState::bumpRevision(), paths(), validate(), value, eve::editing::EditableTargetState::widenDirty() , 以及 zones().

◆ makeDeleteAgent()

Result< DomainOperation > eve::crowd_editing::CrowdDocumentTarget::makeDeleteAgent ( const StableId & id ) const

Plan reversible agent deletion.

在文件 CrowdDocument.cpp 第 217 行定义.

引用了 found, operation , 以及 value.

◆ makeDeletePath()

Result< DomainOperation > eve::crowd_editing::CrowdDocumentTarget::makeDeletePath ( const StableId & id ) const

Plan reversible path deletion when no agent references it.

在文件 CrowdDocument.cpp 第 255 行定义.

引用了 found, operation , 以及 value.

◆ makeDeleteZone()

Result< DomainOperation > eve::crowd_editing::CrowdDocumentTarget::makeDeleteZone ( const StableId & id ) const

Plan reversible zone deletion.

在文件 CrowdDocument.cpp 第 236 行定义.

引用了 found, operation , 以及 value.

◆ makeSetAgent()

Result< DomainOperation > eve::crowd_editing::CrowdDocumentTarget::makeSetAgent ( const CrowdAgentRecord & record ) const

Plan reversible agent creation or replacement.

在文件 CrowdDocument.cpp 第 210 行定义.

引用了 found, eve::crowd_editing::CrowdAgentRecord::id, operation , 以及 eve::UuidIdAdapter< Tag >::value().

◆ makeSetPath()

Result< DomainOperation > eve::crowd_editing::CrowdDocumentTarget::makeSetPath ( const CrowdPathRecord & record ) const

Plan reversible path creation or replacement.

在文件 CrowdDocument.cpp 第 244 行定义.

引用了 found, eve::crowd_editing::CrowdPathRecord::id, operation , 以及 eve::UuidIdAdapter< Tag >::value().

◆ makeSetZone()

Result< DomainOperation > eve::crowd_editing::CrowdDocumentTarget::makeSetZone ( const CrowdZoneRecord & record ) const

Plan reversible zone creation or replacement.

在文件 CrowdDocument.cpp 第 225 行定义.

引用了 found, eve::crowd_editing::CrowdZoneRecord::id, operation , 以及 eve::UuidIdAdapter< Tag >::value().

◆ overlay()

CrowdOverlayResult eve::crowd_editing::CrowdDocumentTarget::overlay ( int primitiveBudget = 100000 ) const

Produce deterministic path, zone and agent overlay primitives.

在文件 CrowdDocument.cpp 第 277 行定义.

引用了 a, b, eve::crowd_editing::CrowdOverlayResult::diagnostics, id, eve::InvalidArgument, path, eve::PreconditionViolation, eve::crowd_editing::CrowdOverlayResult::primitives, eve::crowd_editing::CrowdOverlayResult::revision, eve::editing::EditableTargetState::revisionValue(), eve::editing::ruleDiagnostic(), eve::crowd_editing::CrowdOverlayResult::status , 以及 validate().

◆ paths()

std::vector< CrowdPathRecord > eve::crowd_editing::CrowdDocumentTarget::paths ( ) const

Enumerate paths in stable-id order.

在文件 CrowdDocument.cpp 第 208 行定义.

引用了 values.

被这些函数引用 loadSnapshot() , 以及 snapshotValue().

◆ queryCapability()

void * eve::crowd_editing::CrowdDocumentTarget::queryCapability ( const CapabilityId & capability )

overridevirtual

Query an optional target capability.

返回: Borrowed pointer owned by this target, or null. @lifetime Valid until this target is destroyed or mutated.

重载 eve::editing::IEditableTarget .

在文件 CrowdDocument.cpp 第 166 行定义.

引用了 eve::editing::IEditableTarget::capability() , 以及 editorCapabilityId().

◆ snapshotValue()

EditorValue eve::crowd_editing::CrowdDocumentTarget::snapshotValue ( ) const

Capture deterministic schema-version-one authoring data.

在文件 CrowdDocument.cpp 第 291 行定义.

引用了 agents(), paths(), value , 以及 zones().

◆ targetId()

TargetId eve::crowd_editing::CrowdDocumentTarget::targetId ( ) const

inlineoverridevirtual

Target id.

实现了 eve::editing::IEditableTarget.

在文件 CrowdDocument.h 第 90 行定义.

◆ validate()

std::vector< EditorDiagnostic > eve::crowd_editing::CrowdDocumentTarget::validate ( ) const

Validate geometry, numeric limits and cross references.

在文件 CrowdDocument.cpp 第 270 行定义.

引用了 eve::NotFound, path, eve::PreconditionViolation, eve::editing::ruleDiagnostic() , 以及 value.

被这些函数引用 loadSnapshot() , 以及 overlay().

◆ zones()

std::vector< CrowdZoneRecord > eve::crowd_editing::CrowdDocumentTarget::zones ( ) const

Enumerate zones in stable-id order.

在文件 CrowdDocument.cpp 第 207 行定义.

引用了 values.

被这些函数引用 loadSnapshot() , 以及 snapshotValue().

该类的文档由以下文件生成:

src/modules/crowd/editing/CrowdDocument.h
src/modules/crowd/editing/CrowdDocument.cpp
