Owning editor document whose runtime projection is one VegetationField. Element IDs remain stable while priority changes reorder the runtime projection. The live field is borrowed and must outlive this main-thread-affine target. No callbacks are invoked. 更多...

#include <VegetationFieldTarget.h>

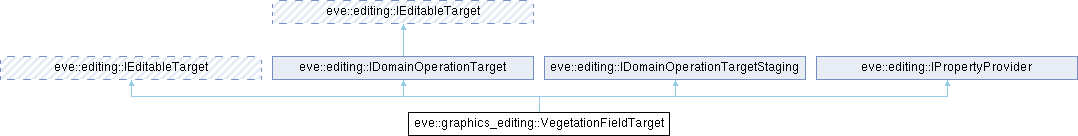

类 eve::graphics_editing::VegetationFieldTarget 继承关系图:

Public 成员函数
editing::TargetId	targetId () const override
	Target id.

std::uint64_t	revision () const override
	Revision.

editing::EditRegion	dirtyRegion () const override
	Dirty region.

void	clearDirtyRegion () override
	Clears dirty region.

editing::TargetDescriptor	describe () const override
	Describe.

void *	queryCapability (const editing::CapabilityId &capability) override
	Query the vegetation property capability.

editing::Result< void >	applyDomainOperation (const editing::DomainOperation &operation) override
	Applies domain operation.

std::unique_ptr< editing::IDomainOperationTarget >	cloneDomainState () const override
	Clones domain state.

editing::Result< void >	commitDomainState (std::unique_ptr< editing::IDomainOperationTarget > candidate) override
	Commits domain state.

eve::Result< eve::Revision >	currentRevision (const editing::SelectionSnapshot &selection) const override
	Current revision.

editing::PropertySchema	schema (const editing::SelectionSnapshot &selection) const override
	Schema.

editing::PropertyReadResult	read (const editing::SelectionSnapshot &selection, const editing::PropertyPath &path) const override
	Reads .

editing::Result< editing::DomainOperation >	makeSet (const editing::SelectionSnapshot &selection, const editing::PropertyPath &path, const editing::Value &value, editing::PropertySetMode mode) const override
	Make set.

editing::Result< editing::DomainOperation >	makeReset (const editing::SelectionSnapshot &selection, const editing::PropertyPath &path) const override
	Make reset.

editing::Result< editing::DomainOperation >	makeTransform (const editing::SelectionSnapshot &selection, glm::vec3 center, glm::vec3 extents, float yaw) const
	Build one atomic operation from a transform gizmo's final state.

std::vector< editing::StableId >	elementIds () const
	Stable selection IDs in authoring order.

Public 成员函数继承自 eve::editing::IEditableTarget
virtual	~IEditableTarget ()=default
	Releases IEditableTarget resources.

template<class C >
eve::OptionalRef< C >	capability ()
	Query a capability through its interface-owned stable identity.

template<class C >
eve::OptionalRef< const C >	capability () const
	Capability.

template<class C >
C *	query ()
	Queries query.

template<class C >
const C *	query () const
	Queries query.

Public 成员函数继承自 eve::editing::IDomainOperationTarget
	~IDomainOperationTarget () override=default
	Releases IDomainOperationTarget resources.

Public 成员函数继承自 eve::editing::IDomainOperationTargetStaging
virtual	~IDomainOperationTargetStaging ()=default
	Releases IDomainOperationTargetStaging resources.

virtual Result< void >	commitDomainState (std::unique_ptr< IDomainOperationTarget > candidate)=0
	Atomically publish a validated candidate state.

Public 成员函数继承自 eve::editing::IPropertyProvider
virtual	~IPropertyProvider ()=default
	Releases IPropertyProvider resources.

静态 Public 成员函数
static editing::Result< std::unique_ptr< VegetationFieldTarget > >	create (std::string id, graphics::VegetationField &field)
	Import a complete runtime field into a new authoring target.

静态 Public 成员函数继承自 eve::editing::IPropertyProvider
static CapabilityId	editingCapabilityId ()
	Stable capability identity for generic property editing.

详细描述

Owning editor document whose runtime projection is one VegetationField. Element IDs remain stable while priority changes reorder the runtime projection. The live field is borrowed and must outlive this main-thread-affine target. No callbacks are invoked.

在文件 VegetationFieldTarget.h 第 17 行定义.

成员函数说明

◆ applyDomainOperation()

editing::Result< void > eve::graphics_editing::VegetationFieldTarget::applyDomainOperation ( const editing::DomainOperation & operation )

overridevirtual

Applies domain operation.

实现了 eve::editing::IDomainOperationTarget.

在文件 VegetationFieldTarget.cpp 第 249 行定义.

引用了 center, current, operation, targetId , 以及 yaw.

◆ clearDirtyRegion()

void eve::graphics_editing::VegetationFieldTarget::clearDirtyRegion ( )

inlineoverridevirtual

Clears dirty region.

实现了 eve::editing::IEditableTarget.

在文件 VegetationFieldTarget.h 第 35 行定义.

◆ cloneDomainState()

std::unique_ptr< editing::IDomainOperationTarget > eve::graphics_editing::VegetationFieldTarget::cloneDomainState ( ) const

overridevirtual

Clones domain state.

实现了 eve::editing::IDomainOperationTargetStaging.

在文件 VegetationFieldTarget.cpp 第 283 行定义.

◆ commitDomainState()

editing::Result< void > eve::graphics_editing::VegetationFieldTarget::commitDomainState ( std::unique_ptr< editing::IDomainOperationTarget > candidate )

override

Commits domain state.

在文件 VegetationFieldTarget.cpp 第 289 行定义.

◆ create()

editing::Result< std::unique_ptr< VegetationFieldTarget > > eve::graphics_editing::VegetationFieldTarget::create	(	std::string	id,
		graphics::VegetationField &	field
	)

static

Import a complete runtime field into a new authoring target.

返回: Owning target, or a structured failure without modifying the field.

在文件 VegetationFieldTarget.cpp 第 59 行定义.

引用了 elements, entries, eve::graphics::VegetationField::globalValues(), index, eve::graphics::VegetationField::revision(), revision , 以及 eve::graphics::VegetationField::snapshotElements().

◆ currentRevision()

eve::Result< eve::Revision > eve::graphics_editing::VegetationFieldTarget::currentRevision ( const editing::SelectionSnapshot & selection ) const

overridevirtual

Current revision.

重载 eve::editing::IPropertyProvider .

在文件 VegetationFieldTarget.cpp 第 112 行定义.

引用了 eve::Conflict, eve::Diagnostic::error(), eve::Result< T >::failure() , 以及 eve::Result< T >::success().

◆ describe()

editing::TargetDescriptor eve::graphics_editing::VegetationFieldTarget::describe ( ) const

overridevirtual

Describe.

重载 eve::editing::IEditableTarget .

在文件 VegetationFieldTarget.cpp 第 84 行定义.

引用了 targetId.

◆ dirtyRegion()

editing::EditRegion eve::graphics_editing::VegetationFieldTarget::dirtyRegion ( ) const

inlineoverridevirtual

Dirty region.

实现了 eve::editing::IEditableTarget.

在文件 VegetationFieldTarget.h 第 33 行定义.

◆ elementIds()

std::vector< editing::StableId > eve::graphics_editing::VegetationFieldTarget::elementIds ( ) const

Stable selection IDs in authoring order.

在文件 VegetationFieldTarget.cpp 第 304 行定义.

◆ makeReset()

editing::Result< editing::DomainOperation > eve::graphics_editing::VegetationFieldTarget::makeReset	(	const editing::SelectionSnapshot &	selection,
		const editing::PropertyPath &	path
	)		const

overridevirtual

Make reset.

实现了 eve::editing::IPropertyProvider.

在文件 VegetationFieldTarget.cpp 第 215 行定义.

引用了 descriptor , 以及 path.

◆ makeSet()

editing::Result< editing::DomainOperation > eve::graphics_editing::VegetationFieldTarget::makeSet	(	const editing::SelectionSnapshot &	selection,
		const editing::PropertyPath &	path,
		const editing::Value &	value,
		editing::PropertySetMode	mode
	)		const

overridevirtual

Make set.

实现了 eve::editing::IPropertyProvider.

在文件 VegetationFieldTarget.cpp 第 176 行定义.

引用了 descriptor, number, path, eve::graphics::VegetationField::replace(), valid, value , 以及 values.

◆ makeTransform()

editing::Result< editing::DomainOperation > eve::graphics_editing::VegetationFieldTarget::makeTransform	(	const editing::SelectionSnapshot &	selection,
		glm::vec3	center,
		glm::vec3	extents,
		float	yaw
	)		const

Build one atomic operation from a transform gizmo's final state.

参数

center	World-space center.
extents	Positive local half-size.
yaw	Radians around positive Y.

在文件 VegetationFieldTarget.cpp 第 156 行定义.

引用了 center, eve::graphics::VegetationField::replace(), valid, values , 以及 yaw.

◆ queryCapability()

void * eve::graphics_editing::VegetationFieldTarget::queryCapability ( const editing::CapabilityId & capability )

overridevirtual

Query the vegetation property capability.

返回: Borrowed pointer owned by this target, or null for an unknown capability. @lifetime Valid until this target is destroyed.

重载 eve::editing::IEditableTarget .

在文件 VegetationFieldTarget.cpp 第 92 行定义.

◆ read()

editing::PropertyReadResult eve::graphics_editing::VegetationFieldTarget::read	(	const editing::SelectionSnapshot &	selection,
		const editing::PropertyPath &	path
	)		const

overridevirtual

Reads .

实现了 eve::editing::IPropertyProvider.

在文件 VegetationFieldTarget.cpp 第 130 行定义.

引用了 path.

◆ revision()

std::uint64_t eve::graphics_editing::VegetationFieldTarget::revision ( ) const

inlineoverridevirtual

Revision.

实现了 eve::editing::IEditableTarget.

在文件 VegetationFieldTarget.h 第 31 行定义.

◆ schema()

editing::PropertySchema eve::graphics_editing::VegetationFieldTarget::schema ( const editing::SelectionSnapshot & selection ) const

overridevirtual

Schema.

实现了 eve::editing::IPropertyProvider.

在文件 VegetationFieldTarget.cpp 第 120 行定义.

引用了 eve::editing::PropertySchema::properties , 以及 eve::editing::PropertySchema::typeId.

◆ targetId()

editing::TargetId eve::graphics_editing::VegetationFieldTarget::targetId ( ) const

inlineoverridevirtual

Target id.

实现了 eve::editing::IEditableTarget.

在文件 VegetationFieldTarget.h 第 29 行定义.

该类的文档由以下文件生成:

src/modules/graphics/editing/VegetationFieldTarget.h
src/modules/graphics/editing/VegetationFieldTarget.cpp
