eve::lighting_editing::EnvironmentDocumentTarget类 参考

Serializable shared environment target for static, DayNight and Weather modes. 更多...

#include <LightingTarget.h>

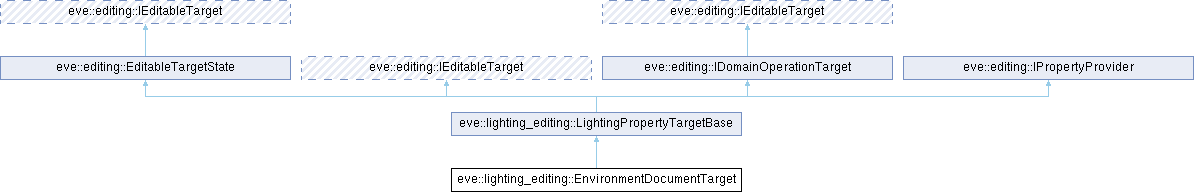

类 eve::lighting_editing::EnvironmentDocumentTarget 继承关系图:

Public 成员函数
	EnvironmentDocumentTarget (std::string id)
	Environment document target.
std::vector< EditorDiagnostic >	validate () const
	Validate mode-dependent atmosphere and weather settings.
Public 成员函数 继承自 eve::lighting_editing::LightingPropertyTargetBase
TargetId	targetId () const override
	Target id.
TargetDescriptor	describe () const override
	Describe.
void *	queryCapability (const CapabilityId &capability) override
	Query an optional target capability.
Result< void >	applyDomainOperation (const DomainOperation &operation) override
	Applies domain operation.
eve::Result< eve::Revision >	currentRevision (const SelectionSnapshot &selection) const override
	Current revision.
PropertySchema	schema (const SelectionSnapshot &selection) const override
	Schema.
PropertyReadResult	read (const SelectionSnapshot &selection, const PropertyPath &path) const override
	Reads .
Result< DomainOperation >	makeSet (const SelectionSnapshot &selection, const PropertyPath &path, const EditorValue &value, PropertySetMode mode) const override
	Make set.
Result< DomainOperation >	makeReset (const SelectionSnapshot &selection, const PropertyPath &path) const override
	Make reset.
EditorValue	snapshotValue () const
	Capture deterministic values for document persistence.
Result< void >	loadSnapshot (const EditorValue &snapshot)
	Atomically load a schema-version-one property snapshot.
const EditorValue *	value (const std::string &path) const
	Read a typed runtime-neutral property value by path.
Public 成员函数 继承自 eve::editing::EditableTargetState
	EditableTargetState (Revision initial=1)
	Constructs the shared state with an explicit initial revision.
EditRegion	dirtyRegion () const override
	Return the accumulated dirty region.
void	clearDirtyRegion () override
	Discard the dirty region; the revision does not change.
std::uint64_t	revision () const override
	Return the current revision.
Revision	revisionValue () const noexcept
	Return the revision as the shared protocol revision type.
Public 成员函数 继承自 eve::editing::IEditableTarget
virtual	~IEditableTarget ()=default
	Releases IEditableTarget resources.
template<class C >
eve::OptionalRef< C >	capability ()
	Query a capability through its interface-owned stable identity.
template<class C >
eve::OptionalRef< const C >	capability () const
	Capability.
template<class C >
C *	query ()
	Queries query.
template<class C >
const C *	query () const
	Queries query.
Public 成员函数 继承自 eve::editing::IDomainOperationTarget
	~IDomainOperationTarget () override=default
	Releases IDomainOperationTarget resources.
Public 成员函数 继承自 eve::editing::IPropertyProvider
virtual	~IPropertyProvider ()=default
	Releases IPropertyProvider resources.

额外继承的成员函数
静态 Public 成员函数 继承自 eve::editing::IPropertyProvider
static CapabilityId	editingCapabilityId ()
	Stable capability identity for generic property editing.
Protected 成员函数 继承自 eve::lighting_editing::LightingPropertyTargetBase
	LightingPropertyTargetBase (std::string id, std::string targetType, PropertySchema schema)
	Construct a concrete property target from its schema and defaults.
Protected 成员函数 继承自 eve::editing::EditableTargetState
void	widenDirty (int x, int y)
	Widen the dirty region without advancing the revision.
void	widenDirty (const EditRegion &region)
	Widen the dirty region without advancing the revision.
void	widenDirty ()
	Mark an unknown area dirty without advancing the revision.
void	bumpRevision ()
	Advance the revision without touching the dirty region.
void	setRevision (Revision revision)
	Adopt a revision observed elsewhere, without advancing it.
void	setDirtyRegion (const EditRegion &region)
	Replace the dirty region wholesale, without advancing the revision.
void	markDirty (int x, int y)
	Include one cell in the dirty region and advance the revision.
void	markDirty (const EditRegion &region)
	Include a whole region and advance the revision.
void	markDirty ()
	Mark an unknown area dirty and advance the revision.

详细描述

Serializable shared environment target for static, DayNight and Weather modes.

在文件 LightingTarget.h 第 110 行定义.

构造及析构函数说明

EnvironmentDocumentTarget()

eve::lighting_editing::EnvironmentDocumentTarget::EnvironmentDocumentTarget ( std::string  id )

explicit

Environment document target.

在文件 LightingTarget.cpp 第 292 行定义.

成员函数说明

validate()

std::vector< EditorDiagnostic > eve::lighting_editing::EnvironmentDocumentTarget::validate

(

)

const

Validate mode-dependent atmosphere and weather settings.

在文件 LightingTarget.cpp 第 295 行定义.

引用了 eve::Conflict, eve::PreconditionViolation, eve::editing::ruleDiagnostic() , 以及 value.

被这些函数引用 eve::lighting_editing::EnvironmentRuntimeApplier::applyDayNight() , 以及 eve::lighting_editing::EnvironmentRuntimeApplier::applyWeather().

---

该类的文档由以下文件生成:

• src/modules/graphics/lighting/editing/LightingTarget.h
• src/modules/graphics/lighting/editing/LightingTarget.cpp
