Revisioned, schema-driven procedural texture recipe asset. 更多...

#include <TextureRecipeTarget.h>

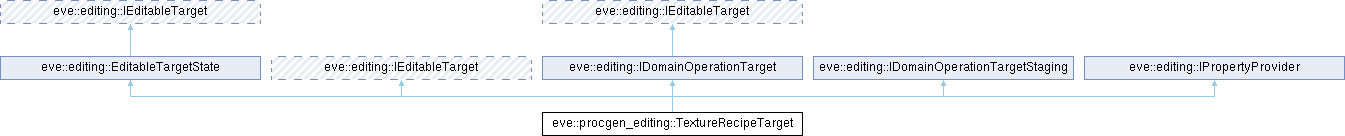

类 eve::procgen_editing::TextureRecipeTarget 继承关系图:

Public 成员函数
	TextureRecipeTarget (std::string id, std::string recipe)
	Construct a registered procedural texture recipe target.

TargetId	targetId () const override
	Target id.

TargetDescriptor	describe () const override
	Describe.

void *	queryCapability (const CapabilityId &) override
	Query an optional target capability.

Result< void >	applyDomainOperation (const DomainOperation &) override
	Applies domain operation.

std::unique_ptr< IDomainOperationTarget >	cloneDomainState () const override
	Clones domain state.

Result< void >	commitDomainState (std::unique_ptr< IDomainOperationTarget >) override
	Commits domain state.

eve::Result< eve::Revision >	currentRevision (const SelectionSnapshot &) const override
	Current revision.

PropertySchema	schema (const SelectionSnapshot &) const override
	Schema.

PropertyReadResult	read (const SelectionSnapshot &, const PropertyPath &) const override
	Reads .

Result< DomainOperation >	makeSet (const SelectionSnapshot &, const PropertyPath &, const EditorValue &, PropertySetMode) const override
	Make set.

Result< DomainOperation >	makeReset (const SelectionSnapshot &, const PropertyPath &) const override
	Make reset.

const std::string &	recipe () const
	Recipe.

const EditorValue::Object &	values () const
	Values.

std::vector< EditorDiagnostic >	validate () const
	Validate.

EditorValue	snapshotValue () const
	Snapshot value.

Result< void >	loadSnapshot (const EditorValue &)
	Loads snapshot.

Public 成员函数继承自 eve::editing::EditableTargetState
	EditableTargetState (Revision initial=1)
	Constructs the shared state with an explicit initial revision.

EditRegion	dirtyRegion () const override
	Return the accumulated dirty region.

void	clearDirtyRegion () override
	Discard the dirty region; the revision does not change.

std::uint64_t	revision () const override
	Return the current revision.

Revision	revisionValue () const noexcept
	Return the revision as the shared protocol revision type.

Public 成员函数继承自 eve::editing::IEditableTarget
virtual	~IEditableTarget ()=default
	Releases IEditableTarget resources.

template<class C >
eve::OptionalRef< C >	capability ()
	Query a capability through its interface-owned stable identity.

template<class C >
eve::OptionalRef< const C >	capability () const
	Capability.

template<class C >
C *	query ()
	Queries query.

template<class C >
const C *	query () const
	Queries query.

Public 成员函数继承自 eve::editing::IDomainOperationTarget
	~IDomainOperationTarget () override=default
	Releases IDomainOperationTarget resources.

Public 成员函数继承自 eve::editing::IDomainOperationTargetStaging
virtual	~IDomainOperationTargetStaging ()=default
	Releases IDomainOperationTargetStaging resources.

Public 成员函数继承自 eve::editing::IPropertyProvider
virtual	~IPropertyProvider ()=default
	Releases IPropertyProvider resources.

额外继承的成员函数
静态 Public 成员函数继承自 eve::editing::IPropertyProvider
static CapabilityId	editingCapabilityId ()
	Stable capability identity for generic property editing.

Protected 成员函数继承自 eve::editing::EditableTargetState
void	widenDirty (int x, int y)
	Widen the dirty region without advancing the revision.

void	widenDirty (const EditRegion &region)
	Widen the dirty region without advancing the revision.

void	widenDirty ()
	Mark an unknown area dirty without advancing the revision.

void	bumpRevision ()
	Advance the revision without touching the dirty region.

void	setRevision (Revision revision)
	Adopt a revision observed elsewhere, without advancing it.

void	setDirtyRegion (const EditRegion &region)
	Replace the dirty region wholesale, without advancing the revision.

void	markDirty (int x, int y)
	Include one cell in the dirty region and advance the revision.

void	markDirty (const EditRegion &region)
	Include a whole region and advance the revision.

void	markDirty ()
	Mark an unknown area dirty and advance the revision.

详细描述

Revisioned, schema-driven procedural texture recipe asset.

在文件 TextureRecipeTarget.h 第 16 行定义.

构造及析构函数说明

◆ TextureRecipeTarget()

eve::procgen_editing::TextureRecipeTarget::TextureRecipeTarget	(	std::string	id,
		std::string	recipe
	)

Construct a registered procedural texture recipe target.

异常

std::invalid_argument When recipe is not registered.

在文件 TextureRecipeTarget.cpp 第 53 行定义.

成员函数说明

◆ applyDomainOperation()

Result< void > eve::procgen_editing::TextureRecipeTarget::applyDomainOperation ( const DomainOperation & op )

overridevirtual

Applies domain operation.

实现了 eve::editing::IDomainOperationTarget.

在文件 TextureRecipeTarget.cpp 第 172 行定义.

引用了 eve::editing::EditableTargetState::bumpRevision(), eve::procgen_editing::detail::field(), eve::editing::DomainOperation::payload, recipe(), eve::editing::DomainOperation::target, eve::editing::DomainOperation::type, validate(), values() , 以及 eve::editing::EditableTargetState::widenDirty().

被这些函数引用 loadSnapshot().

◆ cloneDomainState()

std::unique_ptr< IDomainOperationTarget > eve::procgen_editing::TextureRecipeTarget::cloneDomainState ( ) const

overridevirtual

Clones domain state.

实现了 eve::editing::IDomainOperationTargetStaging.

在文件 TextureRecipeTarget.cpp 第 192 行定义.

◆ commitDomainState()

Result< void > eve::procgen_editing::TextureRecipeTarget::commitDomainState ( std::unique_ptr< IDomainOperationTarget > c )

overridevirtual

Commits domain state.

实现了 eve::editing::IDomainOperationTargetStaging.

在文件 TextureRecipeTarget.cpp 第 195 行定义.

引用了 c , 以及 t.

◆ currentRevision()

eve::Result< eve::Revision > eve::procgen_editing::TextureRecipeTarget::currentRevision ( const SelectionSnapshot & s ) const

overridevirtual

Current revision.

重载 eve::editing::IPropertyProvider .

在文件 TextureRecipeTarget.cpp 第 83 行定义.

引用了 eve::Diagnostic::error(), eve::Result< T >::failure(), eve::InvalidArgument, eve::editing::EditableTargetState::revisionValue(), s , 以及 eve::Result< T >::success().

◆ describe()

TargetDescriptor eve::procgen_editing::TextureRecipeTarget::describe ( ) const

overridevirtual

Describe.

重载 eve::editing::IEditableTarget .

在文件 TextureRecipeTarget.cpp 第 69 行定义.

引用了 eve::editing::EditableTargetState::revisionValue().

◆ loadSnapshot()

Result< void > eve::procgen_editing::TextureRecipeTarget::loadSnapshot ( const EditorValue & s )

Loads snapshot.

在文件 TextureRecipeTarget.cpp 第 207 行定义.

引用了 applyDomainOperation(), c, eve::editing::IEditableTarget::clearDirtyRegion(), eve::procgen_editing::detail::field(), eve::editing::DomainOperation::payload, s, eve::editing::DomainOperation::target, eve::editing::DomainOperation::type , 以及 v.

◆ makeReset()

Result< DomainOperation > eve::procgen_editing::TextureRecipeTarget::makeReset	(	const SelectionSnapshot &	s,
		const PropertyPath &	p
	)		const

overridevirtual

Make reset.

实现了 eve::editing::IPropertyProvider.

在文件 TextureRecipeTarget.cpp 第 143 行定义.

引用了 d, eve::editing::PropertySchema::find(), makeSet(), p, s , 以及 schema().

被这些函数引用 makeSet().

◆ makeSet()

Result< DomainOperation > eve::procgen_editing::TextureRecipeTarget::makeSet	(	const SelectionSnapshot &	s,
		const PropertyPath &	p,
		const EditorValue &	v,
		PropertySetMode	mode
	)		const

overridevirtual

Make set.

实现了 eve::editing::IPropertyProvider.

在文件 TextureRecipeTarget.cpp 第 121 行定义.

引用了 eve::editing::DomainOperation::affectedProperties, d, eve::editing::PropertySchema::find(), eve::editing::DomainOperation::hasInverse, eve::editing::DomainOperation::inverse, eve::editing::DomainOperation::inverseType, makeReset(), eve::editing::DomainOperation::mergeKey, ok, p, eve::editing::DomainOperation::payload, s, schema(), eve::editing::DomainOperation::target, eve::editing::DomainOperation::type, v, eve::editing::validatePropertyValue() , 以及 values().

被这些函数引用 makeReset().

◆ queryCapability()

void * eve::procgen_editing::TextureRecipeTarget::queryCapability ( const CapabilityId & c )

overridevirtual

Query an optional target capability.

返回: Borrowed pointer owned by this target, or null. @lifetime Valid until this target is destroyed or mutated.

重载 eve::editing::IEditableTarget .

在文件 TextureRecipeTarget.cpp 第 76 行定义.

引用了 c.

◆ read()

PropertyReadResult eve::procgen_editing::TextureRecipeTarget::read	(	const SelectionSnapshot &	s,
		const PropertyPath &	p
	)		const

overridevirtual

Reads .

实现了 eve::editing::IPropertyProvider.

在文件 TextureRecipeTarget.cpp 第 113 行定义.

引用了 p , 以及 s.

◆ recipe()

const std::string & eve::procgen_editing::TextureRecipeTarget::recipe ( ) const

inline

Recipe.

在文件 TextureRecipeTarget.h 第 48 行定义.

被这些函数引用 applyDomainOperation().

◆ schema()

PropertySchema eve::procgen_editing::TextureRecipeTarget::schema ( const SelectionSnapshot & ) const

overridevirtual

Schema.

实现了 eve::editing::IPropertyProvider.

在文件 TextureRecipeTarget.cpp 第 90 行定义.

引用了 d, defaultValue, eve::procgen::TextureRecipeRegistry::instance(), p, eve::editing::PropertyDescriptor::path, eve::editing::PropertySchema::properties, r, eve::editing::PropertySchema::typeId , 以及 x.

被这些函数引用 makeReset(), makeSet() , 以及 validate().

◆ snapshotValue()

EditorValue eve::procgen_editing::TextureRecipeTarget::snapshotValue ( ) const

Snapshot value.

在文件 TextureRecipeTarget.cpp 第 204 行定义.

◆ targetId()

TargetId eve::procgen_editing::TextureRecipeTarget::targetId ( ) const

inlineoverridevirtual

Target id.

实现了 eve::editing::IEditableTarget.

在文件 TextureRecipeTarget.h 第 25 行定义.

◆ validate()

std::vector< EditorDiagnostic > eve::procgen_editing::TextureRecipeTarget::validate ( ) const

Validate.

在文件 TextureRecipeTarget.cpp 第 150 行定义.

引用了 d, desc, eve::procgen::TextureRecipeRegistry::instance(), eve::Result< void >::ok(), p, r, s, schema(), eve::editing::validatePropertyValue() , 以及 x.

被这些函数引用 applyDomainOperation().

◆ values()

const EditorValue::Object & eve::procgen_editing::TextureRecipeTarget::values ( ) const

inline

Values.

在文件 TextureRecipeTarget.h 第 50 行定义.

被这些函数引用 applyDomainOperation() , 以及 makeSet().

该类的文档由以下文件生成:

src/modules/procgen/editing/TextureRecipeTarget.h
src/modules/procgen/editing/TextureRecipeTarget.cpp
