Optional live adapter mirroring editor operations into one SceneHost. 更多...

#include <SceneTarget.h>

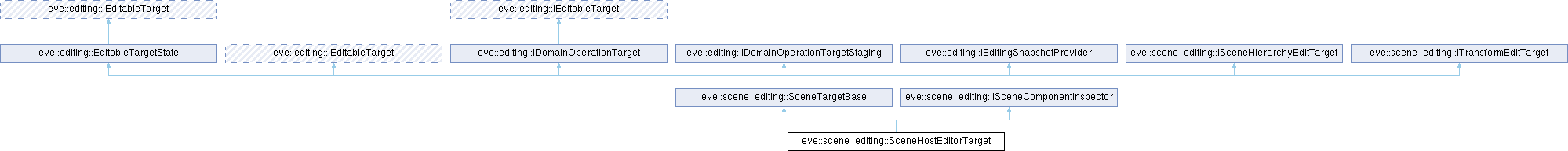

类 eve::scene_editing::SceneHostEditorTarget 继承关系图:

Public 成员函数
	SceneHostEditorTarget (std::string id, scene::SceneHost *host)
	Import a host using a generation handle.

Result< void >	applyDomainOperation (const DomainOperation &operation) override
	Applies domain operation.

void *	queryCapability (const CapabilityId &capability) override
	Query an optional target capability.

std::unique_ptr< IDomainOperationTarget >	cloneDomainState () const override
	Clones domain state.

Result< void >	commitDomainState (std::unique_ptr< IDomainOperationTarget > candidate) override
	Commits domain state.

scene::SceneHost *	host () const
	Compatibility-only pointer projection of the generation-checked host.

Result< std::vector< SceneComponentLinkSnapshot > >	componentLinks (const ObjectId &object) const override
	Enumerate safe link metadata without exposing runtime pointers.

Public 成员函数继承自 eve::scene_editing::SceneTargetBase
	SceneTargetBase (std::string id, std::string type)
	Scene target base.

	~SceneTargetBase () override=default
	Scene target base.

TargetId	targetId () const override
	Target id.

TargetDescriptor	describe () const override
	Describe.

void *	queryCapability (const CapabilityId &capability) override
	Queries capability.

Result< void >	applyDomainOperation (const DomainOperation &operation) override
	Applies domain operation.

std::unique_ptr< IDomainOperationTarget >	cloneDomainState () const override
	Clones domain state.

Result< void >	commitDomainState (std::unique_ptr< IDomainOperationTarget > candidate) override
	Commits domain state.

Result< SceneObjectSnapshot >	sceneObject (const ObjectId &id) const override
	Scene object.

std::vector< ObjectId >	sceneChildren (const ObjectId &parent) const override
	Scene children.

Result< DomainOperation >	makeCreate (const CreateSceneObjectRequest &request) const override
	Make create.

Result< DomainOperation >	makeDelete (const ObjectId &id) const override
	Make delete.

Result< DomainOperation >	makeRename (const ObjectId &id, const std::string &name) const override
	Make rename.

Result< DomainOperation >	makeReparent (const ObjectId &id, const ObjectId &parent) const override
	Make reparent.

Result< SceneTransformValue >	readTransform (const ObjectId &id) const override
	Reads transform.

Result< DomainOperation >	makeSetTransform (const ObjectId &id, const SceneTransformValue &transform) const override
	Make set transform.

void	bindComponentPayloads (SceneComponentPayloadRegistry *registry)
	Bind an optional non-owning registry used by component inspectors.

EditorValue	snapshotValue () const override
	Capture deterministic scene content for document persistence.

Result< DomainOperation >	makeRestore (const EditorValue &snapshot) const
	Plan atomic replacement of hierarchy/TRS from a versioned snapshot.

Public 成员函数继承自 eve::editing::EditableTargetState
	EditableTargetState (Revision initial=1)
	Constructs the shared state with an explicit initial revision.

EditRegion	dirtyRegion () const override
	Return the accumulated dirty region.

void	clearDirtyRegion () override
	Discard the dirty region; the revision does not change.

std::uint64_t	revision () const override
	Return the current revision.

Revision	revisionValue () const noexcept
	Return the revision as the shared protocol revision type.

Public 成员函数继承自 eve::editing::IEditableTarget
virtual	~IEditableTarget ()=default
	Releases IEditableTarget resources.

virtual void *	queryCapability (const CapabilityId &capability)
	Query an optional stable capability.

template<class C >
eve::OptionalRef< C >	capability ()
	Query a capability through its interface-owned stable identity.

template<class C >
eve::OptionalRef< const C >	capability () const
	Capability.

template<class C >
C *	query ()
	Queries query.

template<class C >
const C *	query () const
	Queries query.

Public 成员函数继承自 eve::editing::IDomainOperationTarget
	~IDomainOperationTarget () override=default
	Releases IDomainOperationTarget resources.

Public 成员函数继承自 eve::editing::IDomainOperationTargetStaging
virtual	~IDomainOperationTargetStaging ()=default
	Releases IDomainOperationTargetStaging resources.

Public 成员函数继承自 eve::editing::IEditingSnapshotProvider
virtual	~IEditingSnapshotProvider ()=default
	Releases IEditingSnapshotProvider resources.

Public 成员函数继承自 eve::scene_editing::ISceneHierarchyEditTarget
virtual	~ISceneHierarchyEditTarget ()=default
	Releases ISceneHierarchyEditTarget resources.

Public 成员函数继承自 eve::scene_editing::ITransformEditTarget
virtual	~ITransformEditTarget ()=default
	Releases ITransformEditTarget resources.

virtual editing::Result< SceneTransformValue >	readTransform (const editing::ObjectId &id) const =0
	Reads transform.

virtual editing::Result< editing::DomainOperation >	makeSetTransform (const editing::ObjectId &id, const SceneTransformValue &transform) const =0
	Make set transform.

Public 成员函数继承自 eve::scene_editing::ISceneComponentInspector
virtual	~ISceneComponentInspector ()=default
	Releases ISceneComponentInspector resources.

额外继承的成员函数
静态 Public 成员函数继承自 eve::editing::IEditingSnapshotProvider
static CapabilityId	editingCapabilityId ()
	Stable capability identity shared by every editable domain target.

静态 Public 成员函数继承自 eve::scene_editing::ISceneHierarchyEditTarget
static CapabilityId	editorCapabilityId ()
	Stable capability identity used instead of cross-module RTTI.

静态 Public 成员函数继承自 eve::scene_editing::ITransformEditTarget
static editing::CapabilityId	editingCapabilityId ()
	Editing capability id.

static editing::CapabilityId	editorCapabilityId ()
	Compatibility spelling retained for existing editor tools.

静态 Public 成员函数继承自 eve::scene_editing::ISceneComponentInspector
static CapabilityId	editorCapabilityId ()
	Stable capability id for component/link metadata inspection.

Protected 成员函数继承自 eve::editing::EditableTargetState
void	widenDirty (int x, int y)
	Widen the dirty region without advancing the revision.

void	widenDirty (const EditRegion &region)
	Widen the dirty region without advancing the revision.

void	widenDirty ()
	Mark an unknown area dirty without advancing the revision.

void	bumpRevision ()
	Advance the revision without touching the dirty region.

void	setRevision (Revision revision)
	Adopt a revision observed elsewhere, without advancing it.

void	setDirtyRegion (const EditRegion &region)
	Replace the dirty region wholesale, without advancing the revision.

void	markDirty (int x, int y)
	Include one cell in the dirty region and advance the revision.

void	markDirty (const EditRegion &region)
	Include a whole region and advance the revision.

void	markDirty ()
	Mark an unknown area dirty and advance the revision.

详细描述

Optional live adapter mirroring editor operations into one SceneHost.

Unlike RuntimeWorldTarget's standalone model, this adapter imports retained nodes and atomically publishes candidate trees while preserving surviving links. @thread Owner thread only. The ECS table must outlive the target; a destroyed host is detected by generation. External host edits require a new session. @reentrancy Publishes a single tree_changed event after commit. Observers see the complete tree; they must not destroy this target during the callback.

在文件 SceneTarget.h 第 193 行定义.

构造及析构函数说明

◆ SceneHostEditorTarget()

eve::scene_editing::SceneHostEditorTarget::SceneHostEditorTarget	(	std::string	id,
		scene::SceneHost *	host
	)

Import a host using a generation handle.

参数

host	Borrowed for this call, or null for staging.

异常

std::invalid_argument Invalid host data. @lifetime The ECS table outlives the target; the host itself may be destroyed.

在文件 SceneRuntime.cpp 第 65 行定义.

引用了 eve::scene_editing::SceneTargetBase::applyDomainOperation(), eve::editing::IEditableTarget::clearDirtyRegion(), host(), eve::scene_editing::CreateSceneObjectRequest::id, imported, eve::scene_editing::SceneTargetBase::makeCreate(), node, operation , 以及 request.

成员函数说明

◆ applyDomainOperation()

Result< void > eve::scene_editing::SceneHostEditorTarget::applyDomainOperation ( const DomainOperation & operation )

overridevirtual

Applies domain operation.

实现了 eve::editing::IDomainOperationTarget.

在文件 SceneRuntime.cpp 第 119 行定义.

引用了 eve::scene_editing::SceneTargetBase::applyDomainOperation(), cloneDomainState(), commitDomainState() , 以及 operation.

◆ cloneDomainState()

std::unique_ptr< IDomainOperationTarget > eve::scene_editing::SceneHostEditorTarget::cloneDomainState ( ) const

overridevirtual

Clones domain state.

实现了 eve::editing::IDomainOperationTargetStaging.

在文件 SceneRuntime.cpp 第 131 行定义.

被这些函数引用 applyDomainOperation().

◆ commitDomainState()

Result< void > eve::scene_editing::SceneHostEditorTarget::commitDomainState ( std::unique_ptr< IDomainOperationTarget > candidate )

overridevirtual

Commits domain state.

实现了 eve::editing::IDomainOperationTargetStaging.

在文件 SceneRuntime.cpp 第 206 行定义.

引用了 eve::scene_editing::SceneTargetBase::commitDomainState(), host(), ok , 以及 eve::scene_editing::SceneTargetBase::targetId().

被这些函数引用 applyDomainOperation().

◆ componentLinks()

Result< std::vector< SceneComponentLinkSnapshot > > eve::scene_editing::SceneHostEditorTarget::componentLinks ( const ObjectId & object ) const

overridevirtual

Enumerate safe link metadata without exposing runtime pointers.

实现了 eve::scene_editing::ISceneComponentInspector.

在文件 SceneRuntime.cpp 第 97 行定义.

引用了 a, alive, eve::scene::LinkOps::alive, b, eve::editing::failed(), host(), eve::scene::linkKindName(), eve::scene::linkOps(), eve::UuidIdAdapter< Tag >::value() , 以及 value.

◆ host()

scene::SceneHost * eve::scene_editing::SceneHostEditorTarget::host ( ) const

Compatibility-only pointer projection of the generation-checked host.

返回: Immediate borrowed pointer, or null for staging/destroyed hosts. @lifetime Do not retain across host destruction, ECS mutation or callbacks.

在文件 SceneRuntime.cpp 第 138 行定义.

被这些函数引用 commitDomainState(), componentLinks() , 以及 SceneHostEditorTarget().

◆ queryCapability()

void * eve::scene_editing::SceneHostEditorTarget::queryCapability ( const CapabilityId & capability )

override

Query an optional target capability.

返回: Borrowed pointer owned by this target, or null. @lifetime Valid until this target is destroyed or mutated.

在文件 SceneRuntime.cpp 第 91 行定义.

引用了 eve::editing::IEditableTarget::capability(), eve::scene_editing::ISceneComponentInspector::editorCapabilityId() , 以及 eve::scene_editing::SceneTargetBase::queryCapability().

该类的文档由以下文件生成:

src/modules/scene/editing/SceneTarget.h
src/modules/scene/editing/SceneRuntime.cpp
